| Body Material | : | Bronze |
| Dimensions | : | 4-1/2 in L |
| End Style | : | FNPT Union x FNPT |
| Lee_Descr | : | 34UFX34F-700XL - WILKINS 34UFX34F-700XL NO VENT DUAL CHECK BACKFLOW PREVENTER |
| Lee_UPC | : | 61205207563 |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 175 psi |
| Series | : | 700XL |
| Temperature Rating | : | 180 deg F |
| Type | : | Horizontal/Vertical |
| UPC_Lee | : | 61205207563 |
| Weight | : | 2.5 lb |
| Width | : | 2.75 in |
| Length | : | 4.66 in |
| Volume | : | 51.84 cu-in |

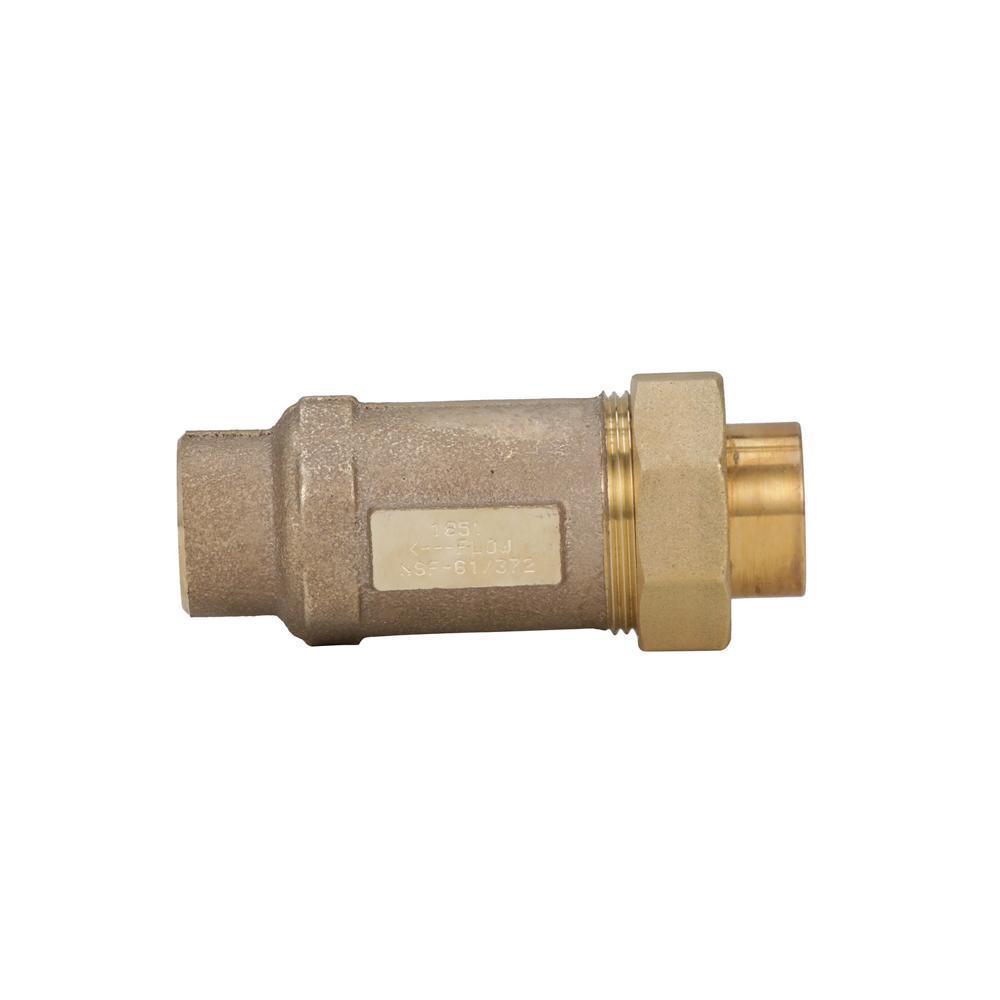

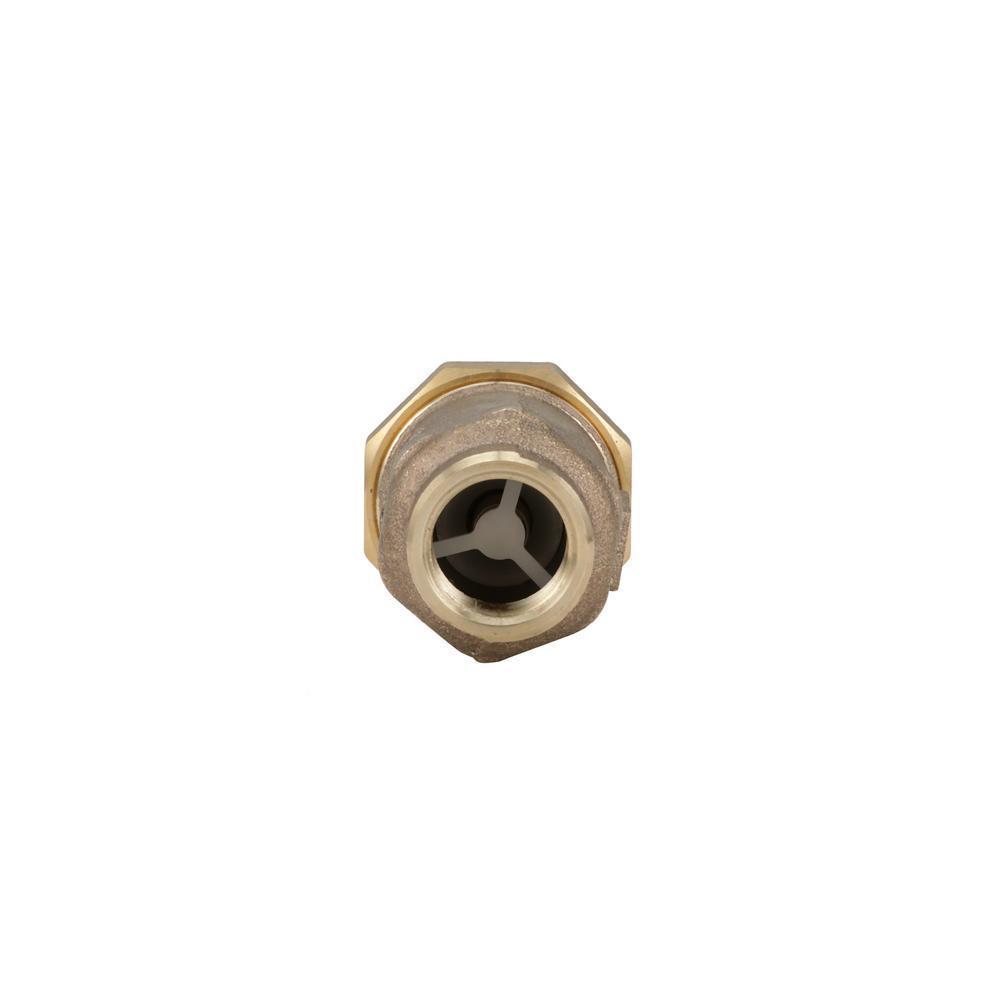

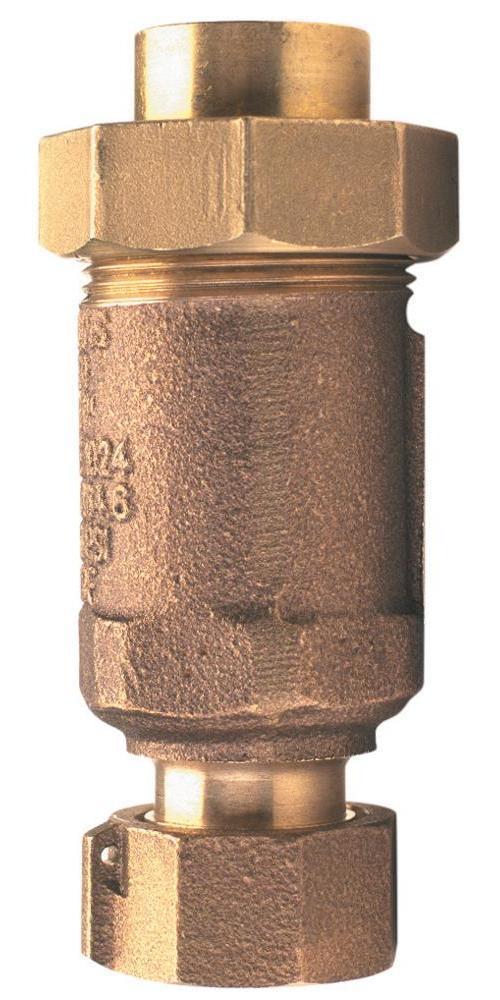

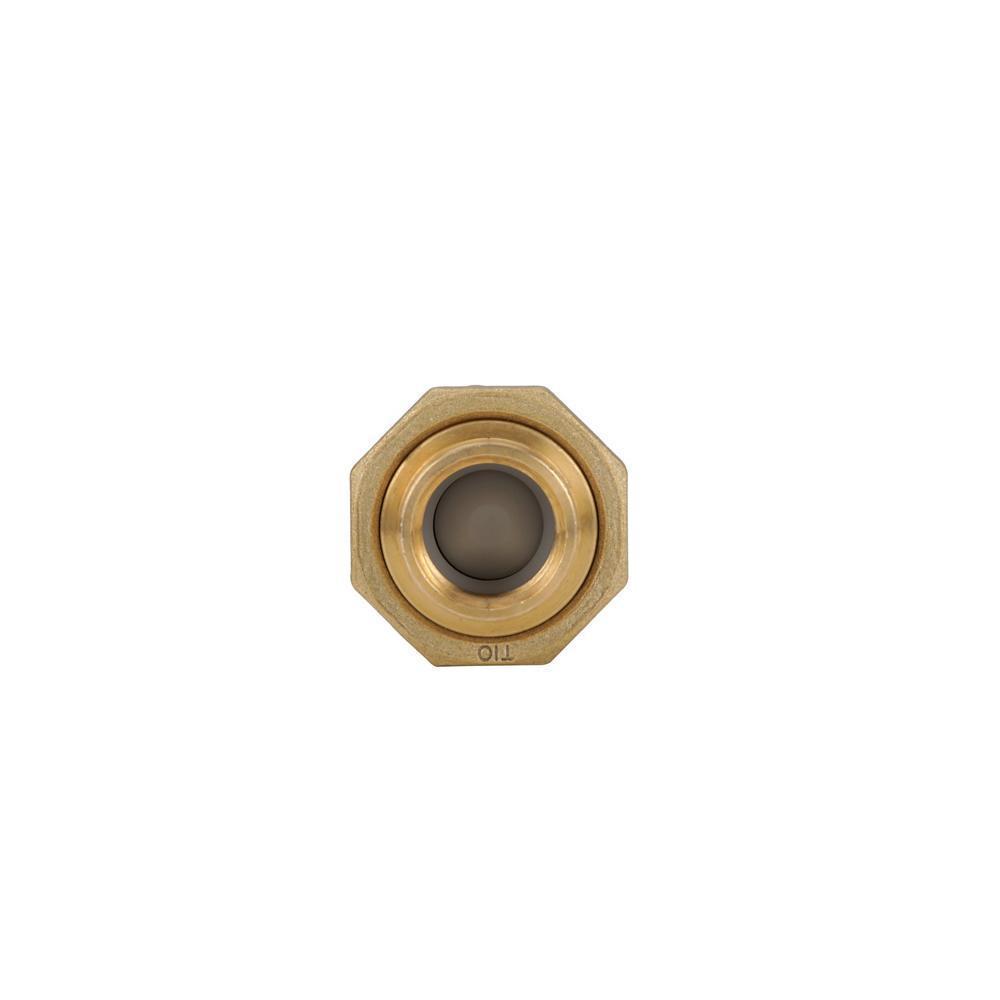

The 700XL Dual Check Valve with 3/4 in. female union inlet x 3/4" female outlet is used in low hazard applications on potable water lines to protect against both backsiphonage and backpressure of polluted water. A non-testable device, the 700XL can be installed horizontally or vertically so long as no part of the unit is submerged and will provide protection where a potential health hazard does not exist. The quality stainless steel springs and bronze body resist against corrosion. The valve is Safe Drinking Water Act compliant, ASSE Listed and CSA Certified.
Zurn® Wilkins Dual Check Valve, Horizontal/Vertical, Series: 700XL, 3/4 in Nominal, FNPT Union x FNPT, 175 psi, 180 deg F, Media: Water, Bronze Body, 4-1/2 in L
- Horizontal or vertical installation reduces installation time and associated costs
- Comes standard with a union inlet connection and integral body outlet connection
- Quality stainless steel springs and low-lead bronze body resist corrosion
