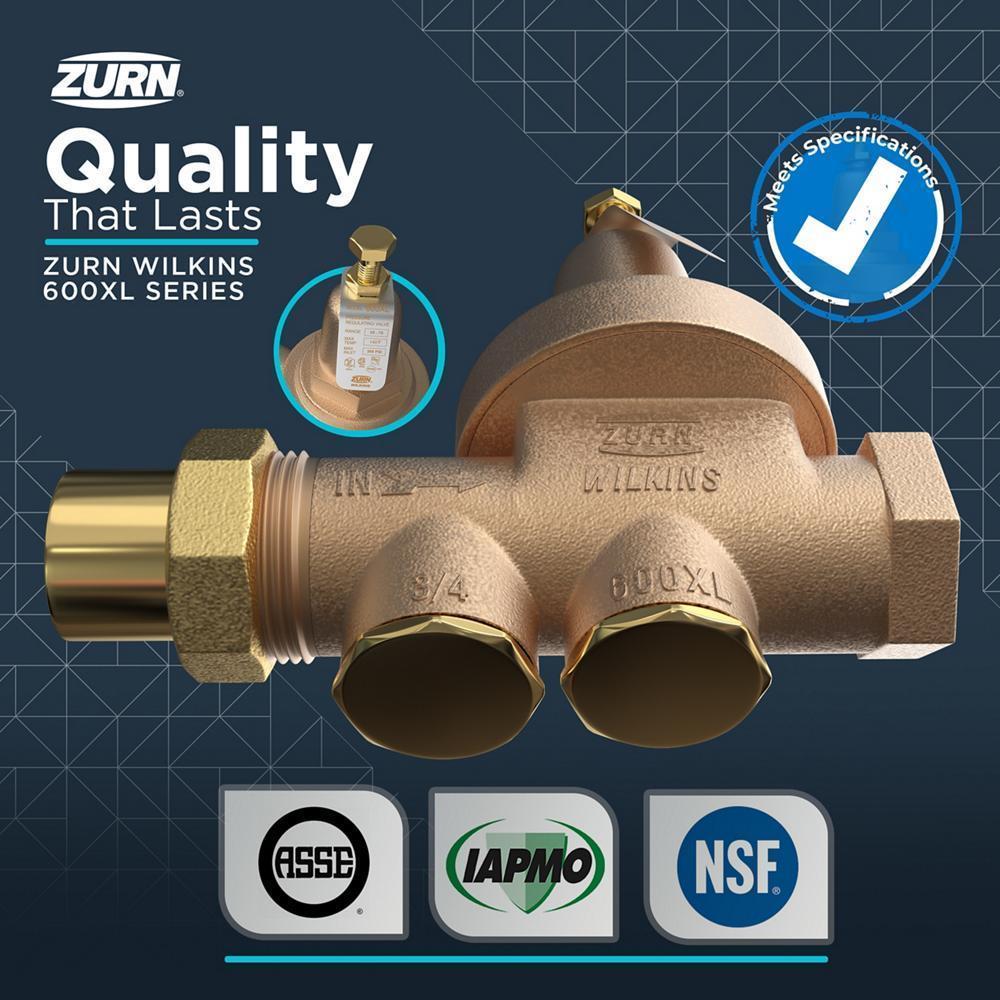

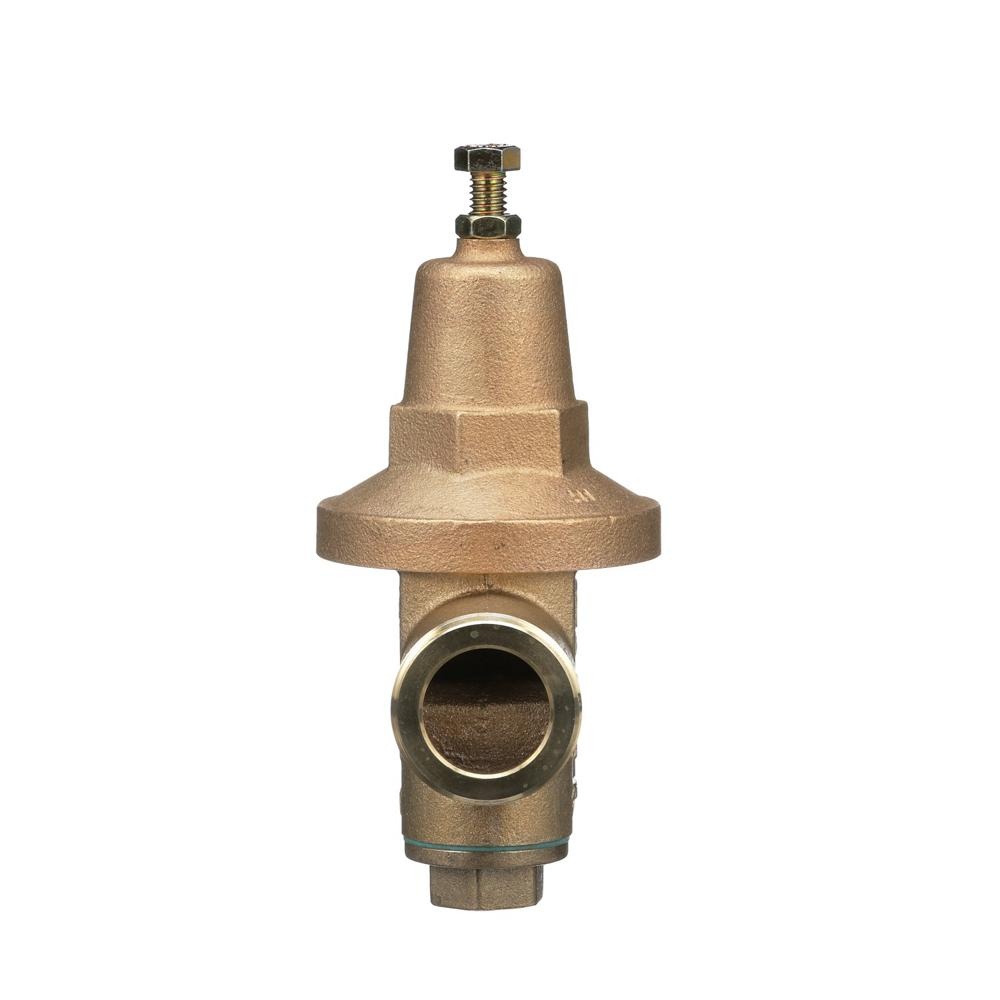

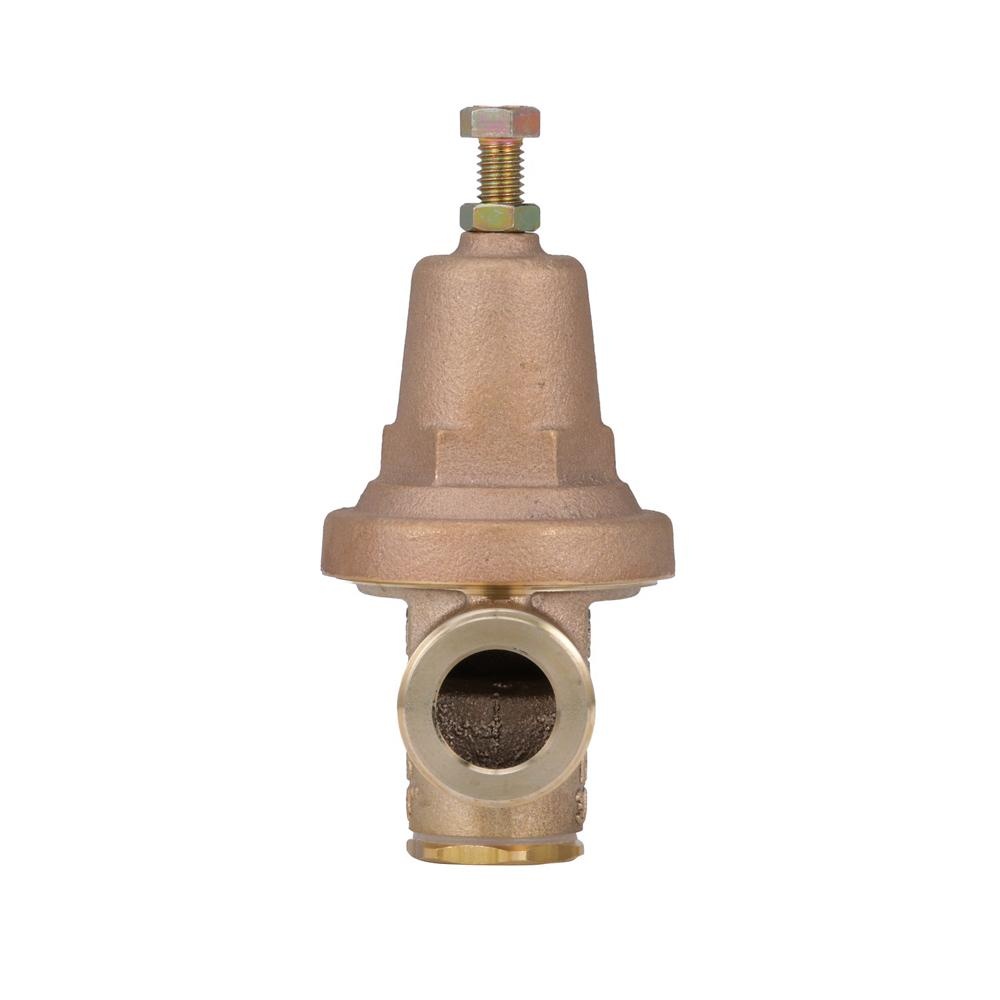

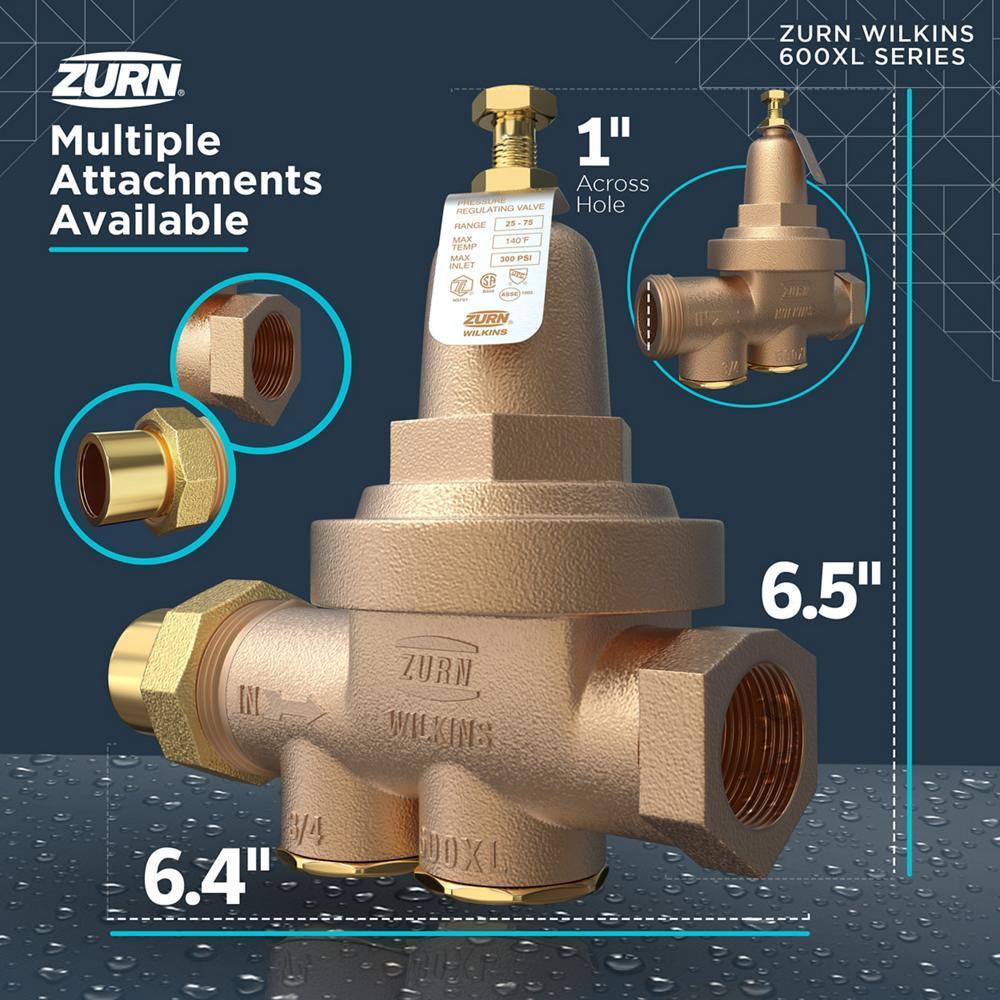

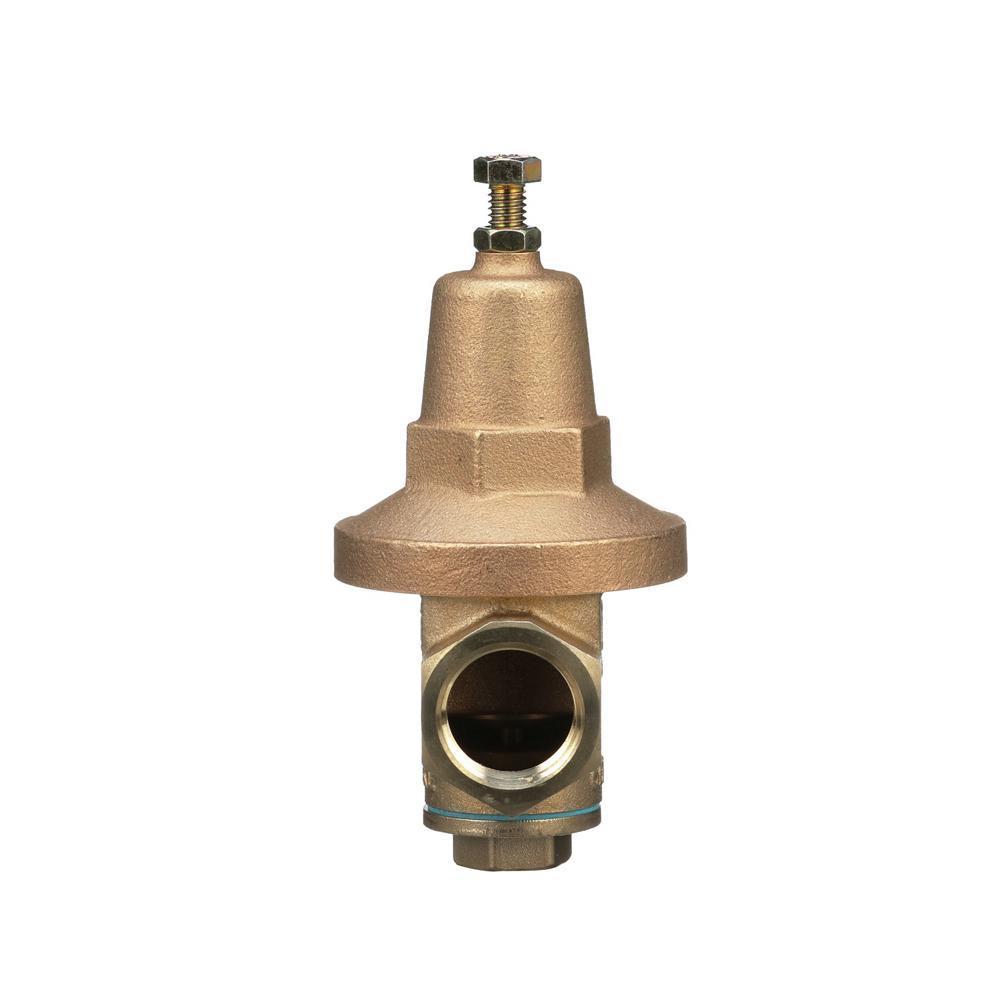

Zurn® Wilkins 1-600XL 600XL Single Union Water Pressure Reducing Valve With Integral By-pass Check Valve and Strainer, 1 in Nominal, FNPT End Style, 300 psi Pressure, Cast Bronze Body
| Body Material | : | Cast Bronze |
| Dimensions | : | 7-1/4 in H |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 6-1/8 in |
| Lee_Descr | : | 1-600XL - ZURN WILKINS PRESSURE REDUCING VALVE LEAD-FREE FNPT UNION X FNPT |
| Lee_UPC | : | 61205202958 |
| Nominal Size | : | 1 in |
| Pressure Range | : | 300 psi |
| Series | : | 600XL |
| Softgoods Material | : | Stainless Steel Seat |
| Temperature Rating | : | 140 deg F |
| Trim Material | : | Cast Bronze |
| Type | : | Single Union |
| UPC_Lee | : | 61205202958 |
| Weight | : | 5.0 lb |
| Width | : | 3.31 in |
| Length | : | 6.44 in |
The 1" 600XL Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.
Zurn® Wilkins Water Pressure Reducing Valve, Single Union, Series: 600XL, 1 in Nominal, FNPT, 300 psi, 140 deg F, 6-1/8 in Inlet to Outlet Length, Cast Bronze Body, Cast Bronze Trim, Stainless Steel Seat, 7-1/4 in H
- Fiber union gasket ensures fast installation
- Durable construction ensures low maintenance and lifecycle costs
- Inlet pressure changes with balanced design features to protect the system
- Stainless steel strainer screen features single-cap removal
- Threaded bell provides easier access than bolted on bells
