| Amperage Rating |
: |
9.4 A |
| Discharge Pipe Size |
: |
2 in NPT |
| Flow Rate |
: |
90 gpm |
| Horsepower |
: |
4/10 hp |
| Lee_Descr |
: |
912-1141 - ZOELLER PREASSEMBLED SEWAGE SYSTEM - M264 PUMP 24" X 24" BASIN WITH COVER ANTI-FLOTATION DEVICE - 4/10HP 115V/1PH 2" DISCHARGE |
| Lee_UPC |
: |
5351448008 |
| Material |
: |
Cast Iron |
| Maximum Head |
: |
18 ft |
| Motor Speed |
: |
1725 rpm |
| Outlet Size |
: |
2 in |
| Phase |
: |
1 ph |
| Series |
: |
912 |
| Solids Handling |
: |
2 in |
| Specifications |
: |
Non-Clogging Vortex Impeller |
| Temperature Rating |
: |
130 deg F |
| Type |
: |
Pre-Assembled |
| UPC_Lee |
: |
5351448008 |
| Voltage Rating |
: |
115 V |
| Weight |
: |
62.0 lb |
| Width |
: |
48.0 in |
| Length |
: |
40.0 in |

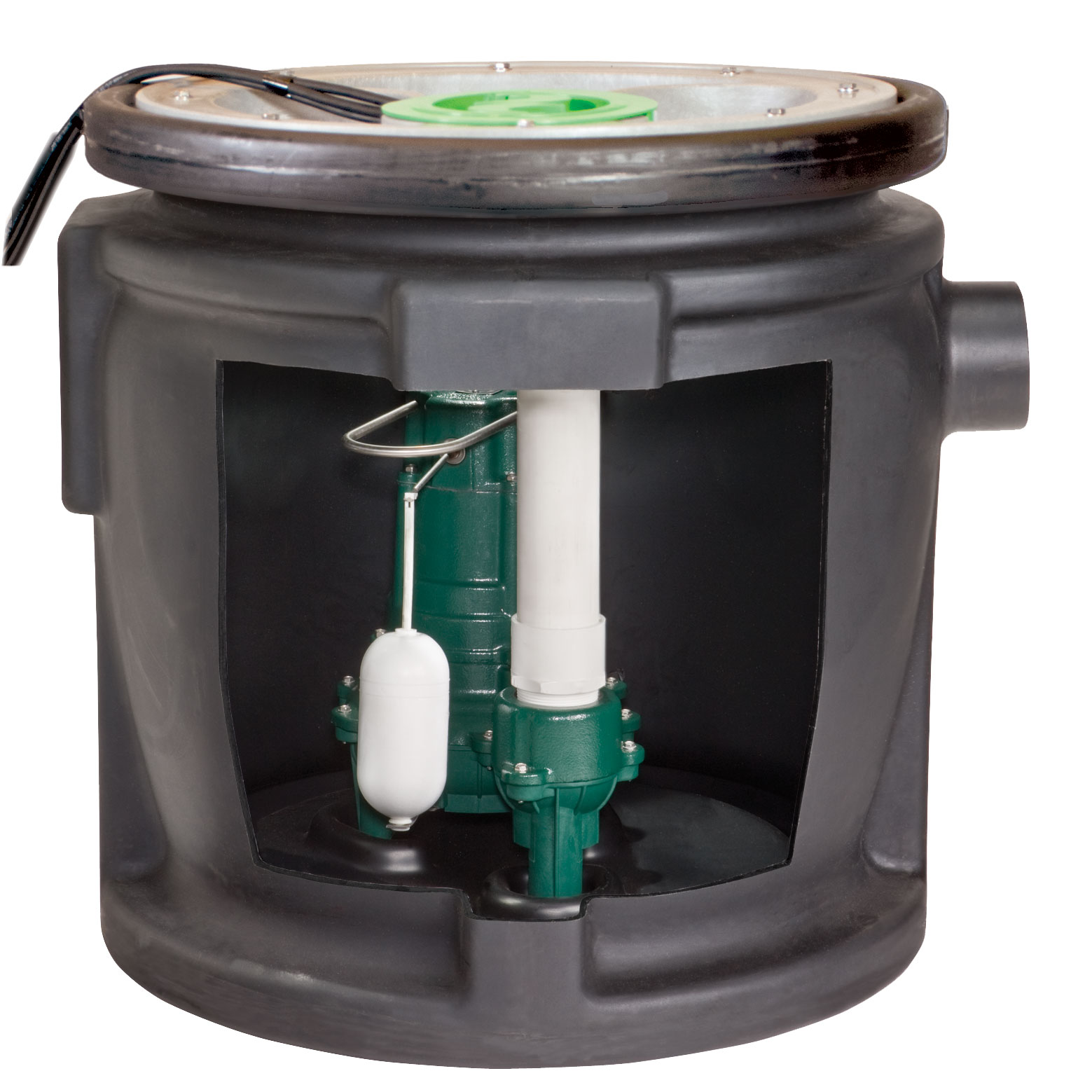

Zoeller®, 912-1141, Sewage Ejector System, Pre-Assembled, Series: 912, 90 gpm Flow Rate, 2 in Outlet, 115 V, 9.4 A, 1 ph, 4/10 hp, 18 ft Maximum Head, 2 in NPT Discharge Pipe, Specifications: Non-Clogging Vortex Impeller, 130 deg F, 2 in Solids Handling, Cast Iron, 1725 rpm Motor
- As with all Zoeller pumps, the Model 264 is 100% Factory Tested
- The Model 264 sewage pump is built with an engineered plastic base and vortex impeller capable of handling 2 in spherical solids reducing the chance of clogs and downtime
- The pump's 115 V electrical cord seal is sealed in the cover
- The pump switch is installed 180 deg from the 4 in inlet to prevent the float from being affected by the inflow of raw sewage
- The discharge pipe is plumbed with a pre-drilled 3/16 in weep hole to prevent the pump from becoming air-locked
- The polyethylene cover comes sealed and bolted down so the system is water and gas tight eliminating the escape of any odor
- The clear construction cover can be removed once the concrete is poured and finished
