| Amperage Rating | : | 9.6 A |
| Automatic/Non Automatic | : | Automatic |
| Bearing Type | : | Upper and Lower Ball |
| Cord Type | : | 6 ft |
| Dimensions | : | 15-1/8 in H x 7-3/8 in W x 19-1/4 in L |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Impeller Type | : | Non-Clogging Vortex |
| Inlet Size | : | 2 in MPT |
| Lee_Descr | : | 201-0006 - ZOELLER QWIK JON PREMIER TOILET GRINDER PUMP & TANK |
| Lee_UPC | : | 5351447740 |
| Material | : | Cast Iron |
| Maximum Flow Rate | : | 45 gpm |
| Maximum Head | : | 29.5 ft |
| Motor Speed | : | 3450 rpm |
| Phase | : | 1 |
| Series | : | 201 |
| Temperature Rating | : | 130 deg F |
| Type | : | Permanent Split Capacitor |
| UPC_Lee | : | 5351447740 |
| Voltage Rating | : | 115 V |
| Weight | : | 31.0 lb |
| Width | : | 15.5 in |
| Length | : | 12.0 in |
| Height | : | 21.0 in |

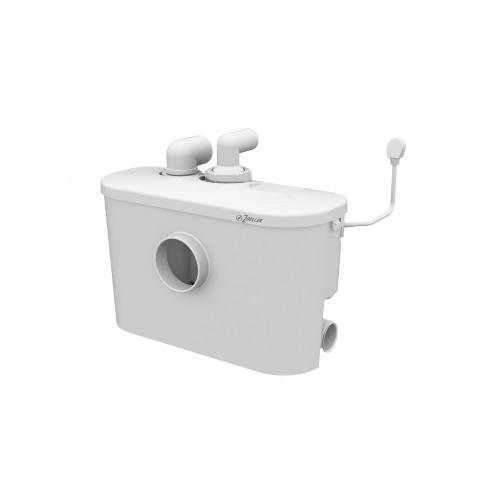

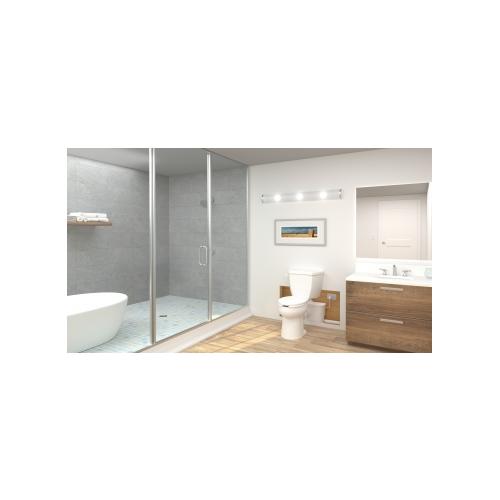

The Model 201 Qwik Jon Premier is a true upflush grinder pump system for full bathroom installations. Avoid breaking concrete and install a bathroom anywhere. The Qwik Jon Premier allows you to install an upflush toilet system in an area where gravity drainage is not accessible or cost prohibitive. Breaking concrete to install a bathroom can be costly. Its messy. Additionally, there is the potential for damage to the structural integrity of the home or building. The Qwik Jon Premier is a perfect alternative to overcoming those challenges. At the heart of the Qwik Jon Premier is a 1/2 HP grinder pump. Because of the grinder pump's cutting capability, it is a good choice for residential or public restroom applications. It does not require a gravity drain, so it is a convenient option for above-grade bathroom installations on the ground floor or in basements. You’ll appreciate the speed and ease of a Qwik Jon Premier installation. You can easily connect the Qwik Jon Premier to tubs, showers, sinks, or any other bathroom fixtures. It can be installed as a freestanding unit behind a toilet or placed behind a wall with the use of our extension kit. If you're looking to install a bathroom in an unfinished basement, workshop, warehouse, or any other area lacking pre-plumbed gravity drainage, look no further than the Qwik Jon Premier.
Zoeller®, 201-0006, Grinder Pump, Permanent Split Capacitor, Series: 201, 45 gpm Maximum, Automatic/Non Automatic: Automatic, 2 in MPT Inlet, 29.5 ft Maximum Head, 1/2 hp, 115 V, 9.6 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, 6 ft Cord, Non-Clogging Vortex Impeller, 130 deg F, Upper and Lower Ball Bearing, Cast Iron, 15-1/8 in H x 7-3/8 in W x 19-1/4 in L Dimensions
- Non-corrosive, engineered thermoplastic, mini grinder pump

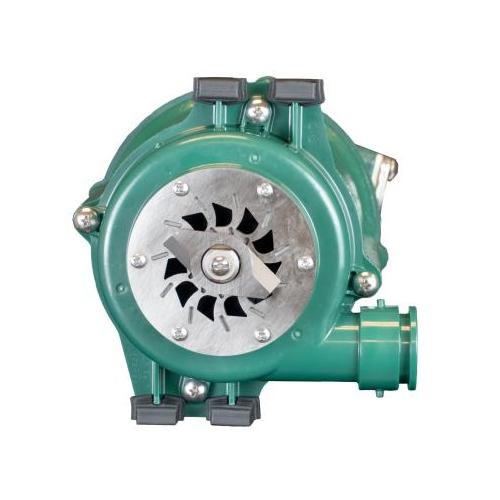

- Premium grinder blade: Investment-cast 440 stainless steel cutter plate is engineered to handle cloth, latex and other hard to grind materials
- Tri-Slice Cutter Technology three independent cutting channels provide over 250000 cuter per minute
- Pump 100% factory tested after assembly
- Automatic reset thermal overload protected
- Hardened stainless steel cutter and disc
- Carbon/ceramic mechanical shaft seal
- Upper and lower ball bearing running in a bath of oil
- All stainless steel hardware
- ABS tank with 2 in MPT of 1-1/2 in slip side inlets
- Preassembled with preset piggyback vertical float switch
- No need to destroy concrete floors
- No need to elevate floor
- Reduces construction costs
- Automatic level control switch
- Thermal overload protected motor
- Stainless steel screws, bolts and handle
