| Dimensions | : | 15/16 in Dia Inlet |
| Domestic/Import | : | Domestic |
| End Style | : | MNPT x Female C |
| Handle Type | : | Wheel |
| Lee_Descr | : | 17CP-12-MH - WOODFORD MODEL 17 - WALL FAUCET - 1/2 CP INLET X 12 INCH - METAL HANDLE - FREEZELESS |
| Lee_UPC | : | 67109001411 |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 125 psi |
| Series | : | 17 Series |
| Temperature Rating | : | 120 deg F |
| Type | : | Anti-Siphon Freezeless |
| UPC_Lee | : | 67109001411 |
| Wall Thickness | : | 12 in |
| Weight | : | 1.68 lb |
| Width | : | 4.0 in |
| Length | : | 17.0 in |
| Height | : | 3.0 in |

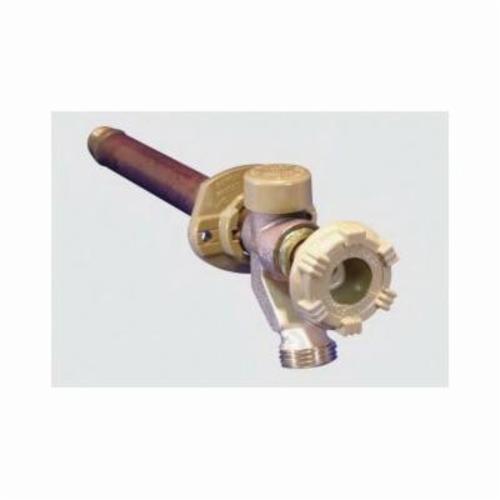

The freezeless Model 17 is designed and intended for year-round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
Woodford® Wall Faucet, Anti-Siphon Freezeless, Series: 17 Series, 1/2 in Nominal, MNPT x Female C, 10 in Wall Thickness, 125 psi, Wheel, 120 deg F, 15/16 in Dia Inlet, Domestic
