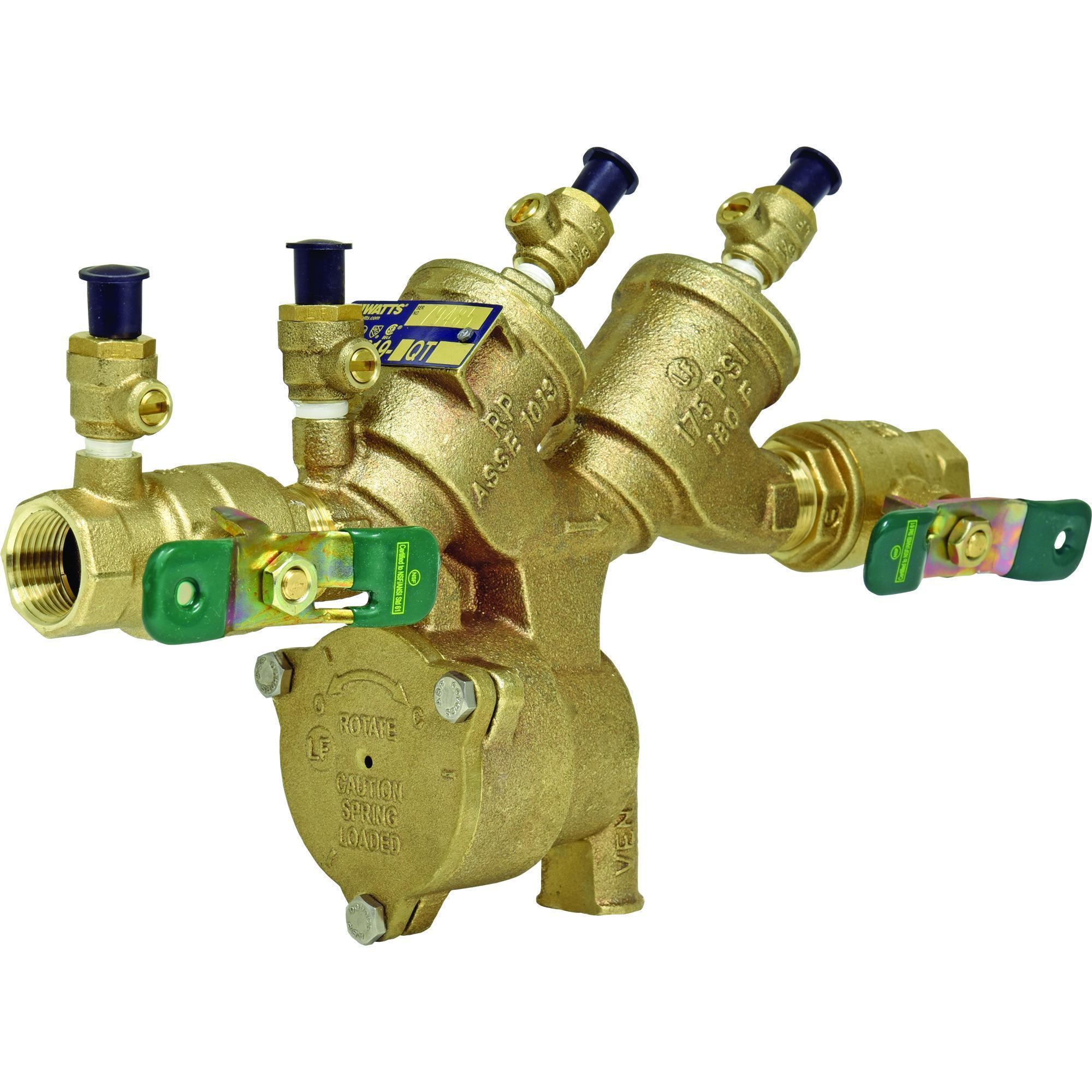

WATTS® 0065372 LF919 Double Check Valve Assembly, 3/4 in Nominal, NPT End Style, Quarter-Turn Resilient Seated Ball Valve, Cast Copper Silicon Alloy Body, Reduced Pressure Zone
| Backflow Type | : | Reduced Pressure Zone |
| Ball Valve/Gate Valve Type | : | Quarter-Turn Resilient Seated Ball Valve |
| Body Material | : | Cast Copper Silicon Alloy |
| Dimensions | : | 12-1/8 in L x 7-7/16 in H |
| End Style | : | NPT |
| Lee_Descr | : | F065372 - WATTS - LF919-QT-FS 3/4 3/4 IN LEAD FREE REDUCED PRESSURE ZONE BACKFLOW PREVENTER ASSEMBLY QUARTER TURN BALL VALVES BACKFLOW FLOOD SENSOR |
| Lee_UPC | : | 9826823851 |
| Nominal Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 175 psi |
| Series | : | LF919 |
| Temperature Rating | : | 33 to 180 deg F |
| UPC_Lee | : | 9826823851 |
| Weight | : | 7.75 lb |
| Width | : | 9.13 in |
| Length | : | 5.25 in |
| Height | : | 11.88 in |
Series LF919 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of contaminated water from entering into the potable water supply due to back siphon age and or backpressure. It consists of a Lead Free cast copper silicon alloy body construction, two poppet style check valves and replaceable check seats, with an intermediate relief valve. Series LF919's compact modular design facilitates easy maintenance and assembly access. It is ideal for protection at health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.
WATTS®, 0065372, Double Check Valve Assembly, Series: LF919, 3/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Resilient Seated Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Full Port, Cast Copper Silicon Alloy Body, 12-1/8 in L x 7-7/16 in H Dimensions
