| Lee_Descr |
: |
VSC2 - GLENTRONICS - VERTICAL SWITCH W/ CONTROLLER |
| Lee_UPC |
: |
71730112256 |
| Section |
: |
Pumps |
| UPC_Lee |
: |
71730112256 |
| Weight |
: |
3.0 |
| Width |
: |
5.5 in |
| Length |
: |
12.5 in |
| Height |
: |
4.25 in |

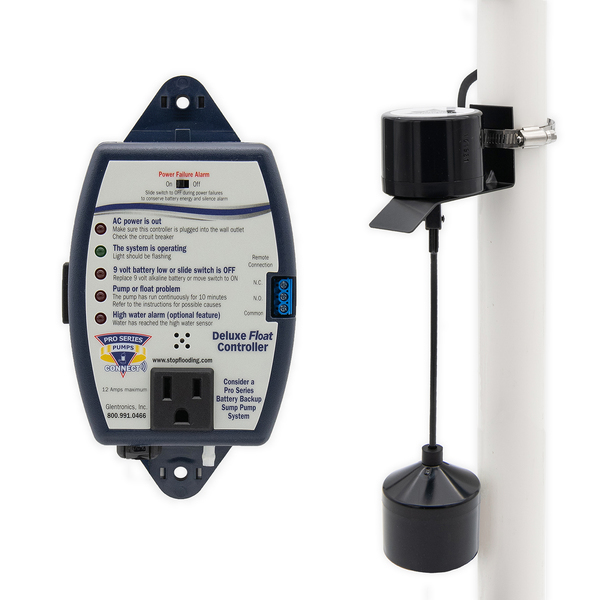

The vertical float switch contains a single large float. Water will lift the float by a 1/2", which will activate the pump. As the pump evacuates the water from the pit, the float will drop. The pump will run for an additional 10 seconds (this setting is adjustable) to evacuate the pit completely after the float drops. Note: There are two rubber stoppers on the float switch rod. Do not remove or alter their position as it will disrupt the timing of the controller and how long the pump runs. The float switch wire includes a connector that can be separated from the controller when the wire needs to be threaded through small openings. Prior to operation, be sure to check the float switch is properly connected to the controller.
- Clear water and sewage applications
- Two versions available: Standard, piggyback switch (120 VAC) version controller (VS) 10-foot cord, Low Current switch, included with Enhanced, Deluxe or High-Cycle Controllers (VSC1.5, VSC2, VSC3) 10-foot cord
- Sealed gold contacts for reliable, high-cycle operation
- Mounts to discharge pipe with included stainless-steel hose clamp
- Adjustable activation level
- Optional 20-foot cord available
