| Domestic/Import |
: |
Import |
| End Style |
: |
PEX Barb |
| Lee_Descr |
: |
UP020 - SHARKBITE PEX-B COUPLING 1IN POLY WP CRIMP |
| Lee_UPC |
: |
69728522112 |
| Material |
: |
Poly-Alloy |
| Nominal Size |
: |
1 in |
| Temperature Rating |
: |
95 to 118 deg F |
| UPC_Lee |
: |
69728522112 |
| Weight |
: |
0.02 lb |
| Width |
: |
0.98 in |
| Length |
: |
1.81 in |
| Volume |
: |
1.75 cu-in |
| Height |
: |
0.98 in |

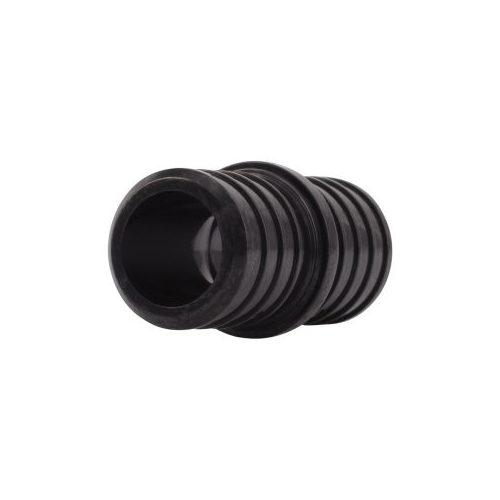

The SharkBite® PEX Poly Alloy Barb Coupling is an easy to install, low-cost solution to connect to PEX tubing. They are suitable for potable water distribution and hydronic heating applications. SharkBite® PEX Poly Alloy Barb fittings can be used in both a stainless steel clamp system, or a copper crimp ring system as well (each sold separately).
Sharkbite®, UP020, Straight Coupling, 1 in Nominal, PEX Barb End Style, Poly-Alloy, 95 to 118 deg F, Import
Advanced polymer solution for when corrosion may affect DZR brass products, can be used with either SharkBite clamp rings or SharkBite® crimp ringsThe time saving clamp rings and tool offer reduced equipment cost, one tool clamps all sizes and the necessity to check each fitting ring with a go/no-go gauge is eliminatedCopper crimp rings and the heavy duty tool with interchangeable jaws, does not require calibration and allows each joint to be checked with a go/no-go gaugeASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systemsASTM F2098 specification for stainless steel clamps for securing SDR9 cross-linked polyethylene (PEX) tubing to metal insert fittingsASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
