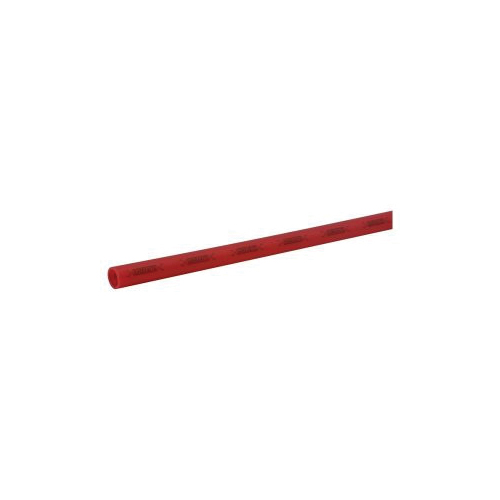

Sharkbite® U860R20 Tubing, 1/2 in Nominal, 0.475 in ID x 1-5/8 in OD x 20 ft Straight L x 0.181 in THK Wall, Red, PEX, Domestic

Manufacturer: Reliance Worldwide Corporation
Brand: Sharkbite®
Lee Supply #: 585052
Manufacturer Part #: U860R20
UPC: 69728525020
Customer Part #:
Carmel

Color      :      Red
Domestic/Import      :      Domestic
End Style      :      CTS
Inside Diameter      :      0.475 in
Lee_Descr      :      U860R20 - SHARKBITE 1/2IN 20FT RED PEX-B TUBING LEAD FREE CRIMP F1807
Lee_UPC      :      69728525020
Length      :      20 ft Straight
Material      :      PEX
Nominal Size      :      1/2 in
Outside Diameter      :      1-5/8 in
Temperature Rating      :      33 to 200 deg F
UPC_Lee      :      69728525020
Wall Thickness      :      0.181 in
Working Pressure      :      160 psi
Weight      :      1.1 lb
Width      :      0.63 in
Length      :      240.0 in
Volume      :      1500.0 cu-in
Height      :      0.63 in

SharkBite® PEX Pipe is a cross-linked polyethylene pipe used for potable water application. The pipe is printed with a SharkBite® imprint pattern that provides a visual aid to determine if the pipe has been inserted all the way into the SharkBite® Push-To-Connect (PTC) fitting. This feature only works if the pipe is cut between the SharkBite® imprint pattern.

Sharkbite® Tubing, 1/2 in Nominal Size, 0.475 in Inside Dia, 1-5/8 in Outside Dia, 20 ft Straight Length, CTS, 0.181 in Wall Thickness, 160 psi Working, 33 to 200 deg F, PEX, Red, Domestic

  • Manufactured without an oxygen barrier for potable water systems
  • The tubing is printed with a SharkBite® imprint pattern that provides a visual aid to determine if the tube has been inserted all the way into the SharkBite® push-fit fitting
  • This feature only works if the tubing is cut between the SharkBite® imprint pattern
  • Strong, flexible, resilient tubing that provides superior temperature performance
  • Flexibility: reduces the number of fittings needed to complete jobs, saving on overall cost and reducing leak points
  • Chlorine and UV resistance: Highest-rated chlorine resistance, one month UV resistance
  • Freeze resistance: PEX pipe is freeze-resistant and can expand slightly if frozen, PEX will contract back to its original form when thawed, PEX is not freeze-proof, PEX should be insulated to prevent freezing
  • Insertion depth markings: Pre-printed insertion depth markings for SharkBite® Universal Push-to-Connect fittings
  • Lead free
