| Dimensions | : | 2.72 in L |
| Domestic/Import | : | Import |
| End Style | : | Push-Fit |
| Finish | : | Natural Brass/Polished Chrome |
| Fitting/Connector Type | : | Coupling |
| Lee_Descr | : | U020LF SHARKBITE 1" BRASS COUPLING PUSH ON LEAD FREE |
| Lee_UPC | : | 69728546505 |
| Material | : | Brass |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 200 deg F |
| UPC_Lee | : | 69728546505 |
| Weight | : | 0.33 lb |
| Width | : | 1.75 in |
| Length | : | 2.75 in |
| Height | : | 1.75 in |

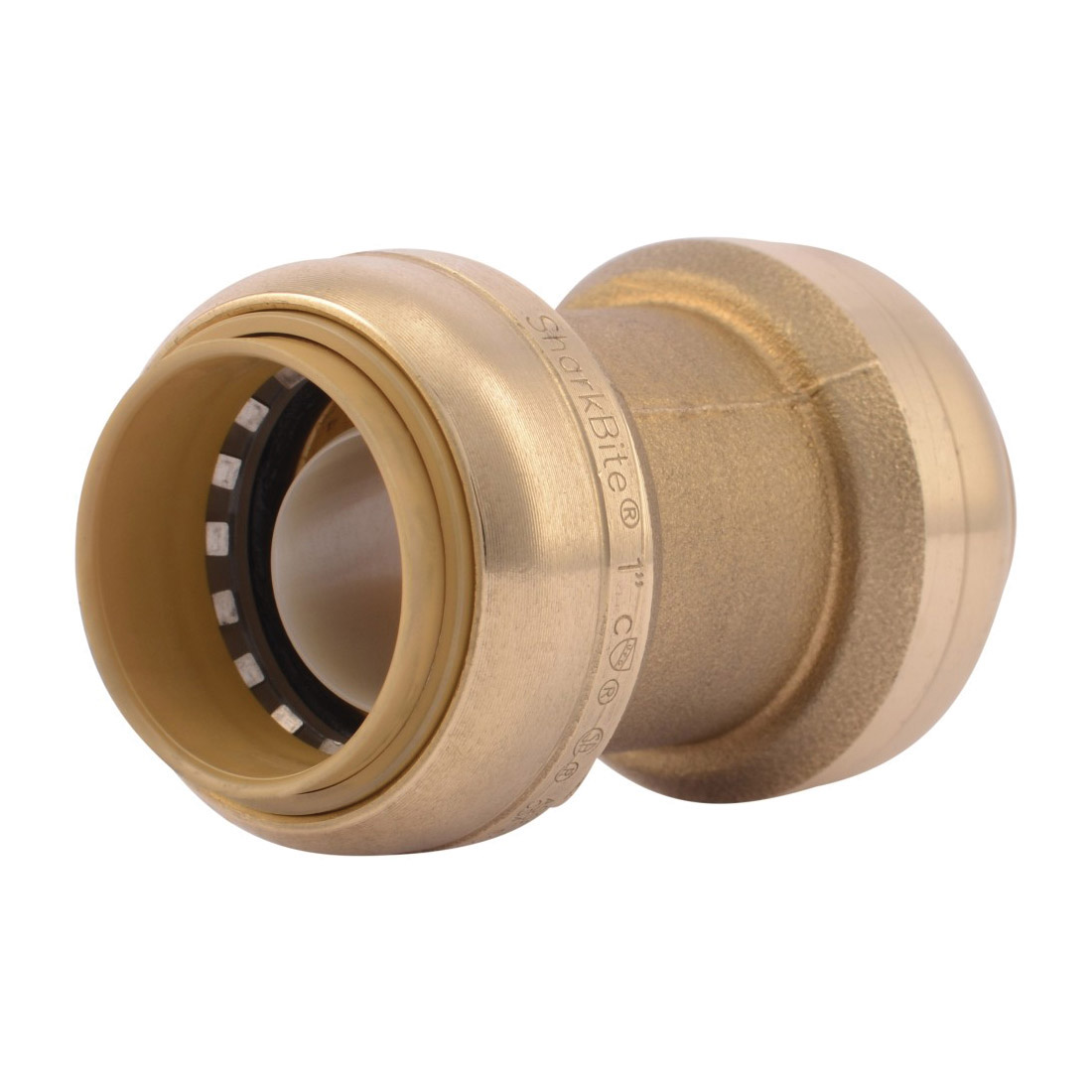

The SharkBite® straight coupling is the easiest plumbing fitting to join any combination of Copper, PEX, CPVC, PE-RT or SRD9 HDPE pipe together. With no soldering, clamps, unions or glue required, it's as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200 deg F and 200 psi.
Sharkbite® Straight Pipe Coupling, Fitting/Connector Type: Coupling, 1 in Nominal, Push-Fit, 200 psi, 200 deg F, Brass, Natural Brass/Polished Chrome, 2.72 in L, Import
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
- Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
- Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
- Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM O-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 1.313 in D insertion
