| Color | : | Red |
| Domestic/Import | : | Domestic |

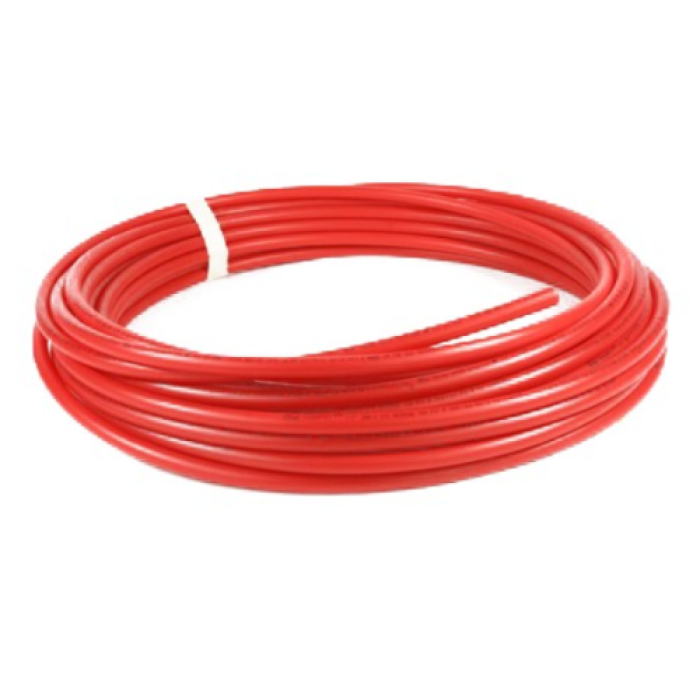

| Lee_Descr | : | 235351-022 - REHAU 1/2IN RAUPEX RED UV SHIELD PIPE 20FT LONG (6.1 M) |
| Length | : | 20 ft |
| Material | : | Crosslinked Polyethylene |
| Method of Manufacture | : | High Pressure Peroxide Extrusion |
| Nominal Size | : | 1/2 in |
| Outside Diameter | : | 5/8 in |
| Schedule Rating | : | SDR 9 |
| Specifications | : | 0.0098 gal/ft Capacity |
| Temperature Rating | : | 180 deg F |
| Wall Thickness | : | 0.07 in |
| Working Pressure | : | 80 psi at 200 deg F, 100 psi at 180 deg F, 160 psi at 73.4 deg F |
RAUPEX® UV shield pipe is manufactured using REHAU® high pressure peroxide method for crosslinked polyethylene (PEXa). RAUPEX® UV shield pipe has a co-extruded PE shield that protects the pipe against ultraviolet light (sunlight) for one year. All RAUPEX® UV shield pipe meets or exceeds the requirements of ASTM F876, CSA B137.5 and PPI TR-3 and is certified to NSF Standards 14/61. RAUPEX® UV shield pipe is manufactured in the USA by REHAU® in a plant using a quality management system that is certified to ISO 9001. RAUPEX® UV shield pipe is specifically designed for use with the EVERLOC+™ compression sleeve system certified to ASTM F877.
REHAU® RAUPEX® UV Shield Pipe, 1/2 in Nominal, 5/8 in OD, 20 ft Length, 0.07 in Wall Thickness, SDR 9 Schedule, 80 psi at 200 deg F, 100 psi at 180 deg F, 160 psi at 73.4 deg F Working, 180 deg F, High Pressure Peroxide Extrusion Method of Manufacture, Crosslinked Polyethylene, Red, Specifications: 0.0098 gal/ft Capacity, Domestic
