| Body Material |
: |
Cast Brass |
| Domestic/Import |
: |
Import |
| End Style |
: |
C |
| Inlet to Outlet Length |
: |
1.61 in |
| Lee_Descr |
: |
12CCVLF - 1/2IN BRASS SWING CHECK VALVE LEAD-FREE - LEGEND |
| Lee_UPC |
: |
66254508976 |
| Low Lead Compliance |
: |
Yes |
| Nominal Size |
: |
1/2 in |
| Port Type |
: |
Full |
| Pressure Rating |
: |
200 psi CWP |
| Series |
: |
S-451NL |
| Top to Inlet Center |
: |
1-1/2 in |
| Trim Material |
: |
Forged Brass |
| UPC_Lee |
: |
66254508976 |
| Weight |
: |
0.43 lb |
| Width |
: |
2.7 in |
| Length |
: |
3.05 in |
| Volume |
: |
14.82 cu-in |
| Height |
: |
1.8 in |

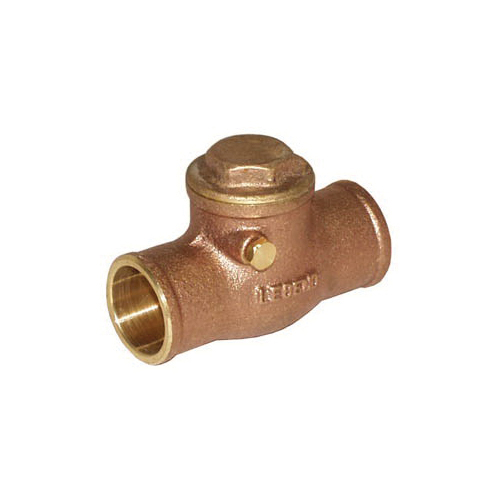

LEGEND LEGEND GREEN™ Swing Check Valve, Lead Free, Series: S-451NL, 1/2 in Nominal, C, 200 psi CWP, Low Lead Compliance: Yes, Full Port, 1.61 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
- Durable, full-pattern cast brass body
- Large, integral seat and disc sealing surfaces
- Forged brass hinge pin assures smooth, non-binding disc operation
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass disc
