| Body Material |
: |
Cast Brass |
| Domestic/Import |
: |
Import |
| End Style |
: |
FNPT |
| Inlet to Outlet Length |
: |
2.07 in |
| Lee_Descr |
: |
12TCVLF - 1/2IN THREADED BRASS SWING CHECK VALVE IPS LEAD-FREE - LEGEND 105-103NL |
| Lee_UPC |
: |
66254508970 |
| Low Lead Compliance |
: |
Yes |
| Nominal Size |
: |
1/2 in |
| Port Type |
: |
Full |
| Pressure Rating |
: |
200 psi CWP |
| Series |
: |
T-451NL |
| Top to Inlet Center |
: |
1-1/2 in |
| Trim Material |
: |
Forged Brass |
| UPC_Lee |
: |
66254508970 |
| Weight |
: |
0.47 lb |
| Width |
: |
2.9 in |
| Length |
: |
3.7 in |
| Volume |
: |
16.63 cu-in |
| Height |
: |
1.55 in |

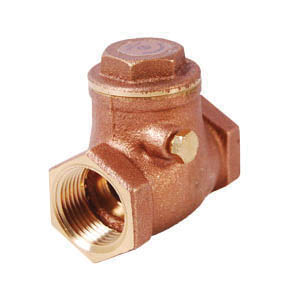

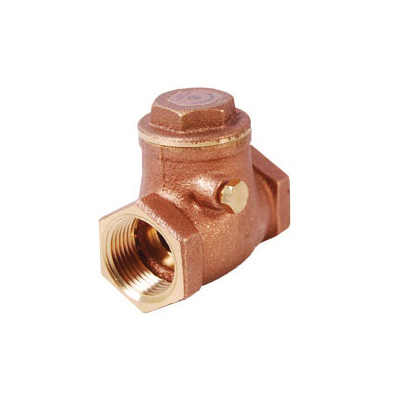

LEGEND LEGEND GREEN™ Swing Check Valve, Lead Free, Series: T-451NL, 1/2 in Nominal, FNPT, 200 psi CWP, Low Lead Compliance: Yes, Full Port, 2.07 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
- Durable, full-pattern cast brass body
- Large, integral seat and disc sealing surfaces
- Forged brass hinge pin assures smooth, non-binding disc operation
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass disc
