| Actuator Type |
: |
Spring-Loaded Latch-Lock Handle |
| Body Material |
: |
Bronze |
| Dimensions |
: |
1-1/2 in H |
| Domestic/Import |
: |
Import |
| End Style |
: |
FNPT |
| Inlet to Outlet Length |
: |
2.74 in |
| Lee_Descr |
: |
34BZSCV - LEGEND 3/4IN BRONZE IN-LINE SPRING CHECK VALVE NO LEAD FNPT x FNPT |
| Lee_UPC |
: |
66254508635 |
| Low Lead Compliance |
: |
Yes |
| Media |
: |
Water |
| Nominal Size |
: |
3/4 in |
| Pressure Rating |
: |
200 psi CWP |
| Series |
: |
T-450NL |
| Softgoods Material |
: |
Buna-N O-Ring |
| Temperature Rating |
: |
200 deg F |
| Trim Material |
: |
Cast Bronze Stem Disc/Stainless Steel Spring |
| UPC_Lee |
: |
66254508635 |
| Weight |
: |
0.54 lb |
| Width |
: |
1.6 in |
| Length |
: |
2.9 in |
| Volume |
: |
7.42 cu-in |
| Height |
: |
1.6 in |

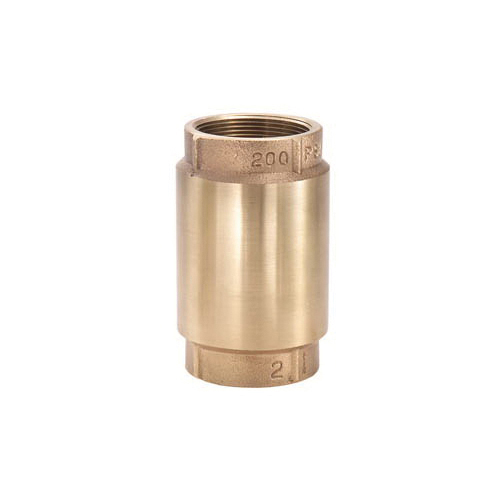

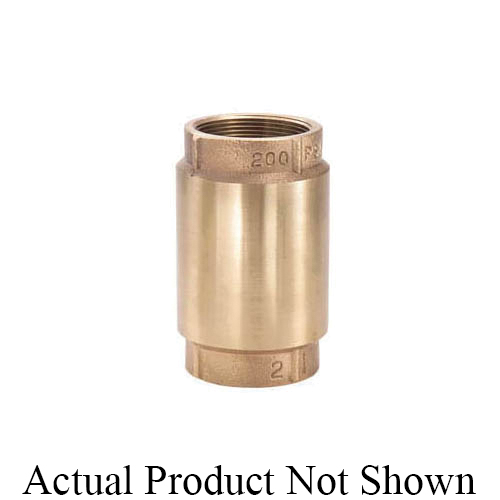

LEGEND GREEN™ In-Line Check Valve, Series: T-450NL, 3/4 in Nominal, FNPT End Style, 200 psi CWP Pressure, 200 deg F, Yes Low Lead Compliance, Media: Water, Spring-Loaded Latch-Lock Handle Actuator, 2.74 in Inlet to Outlet Length, Bronze Body, Cast Bronze Stem Disc/Stainless Steel Spring Trim, Buna-N O-Ring Softgoods, 1-1/2 in H Dimensions, Import
- Durable, heavy-wall cast bronze design is ideal for water well applications
- Spring-loaded stem-disc and elastomer O-ring seal are a silent closure design
- 1/2 lb cracking pressure is ideal for all types of well pumps
- Fully-guided stem minimizes over-travel, reducing the chance of piston failure
- Can be installed in the vertical or horizontal position
- Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
- cast bronze construction
