| Connection Type |
: |
Thread |
| Domestic/Import |
: |
Import |
| Finish |
: |
Black Oxide |
| Lee_Descr |
: |
I1MIFLRFLGBK - 1 MALLEABLE IRON FLOOR FLANGE BLACK |
| Lee_UPC |
: |
66254502543 |
| Material |
: |
Malleable Iron |
| Nominal Size |
: |
1 in |
| Pressure Class |
: |
150 lb |
| Pressure Rating |
: |
150 psi |
| UPC_Lee |
: |
66254502543 |
| Weight |
: |
1.05 lb |
| Width |
: |
3.95 in |
| Length |
: |
4.0 in |
| Volume |
: |
11.06 cu-in |
| Height |
: |
0.7 in |

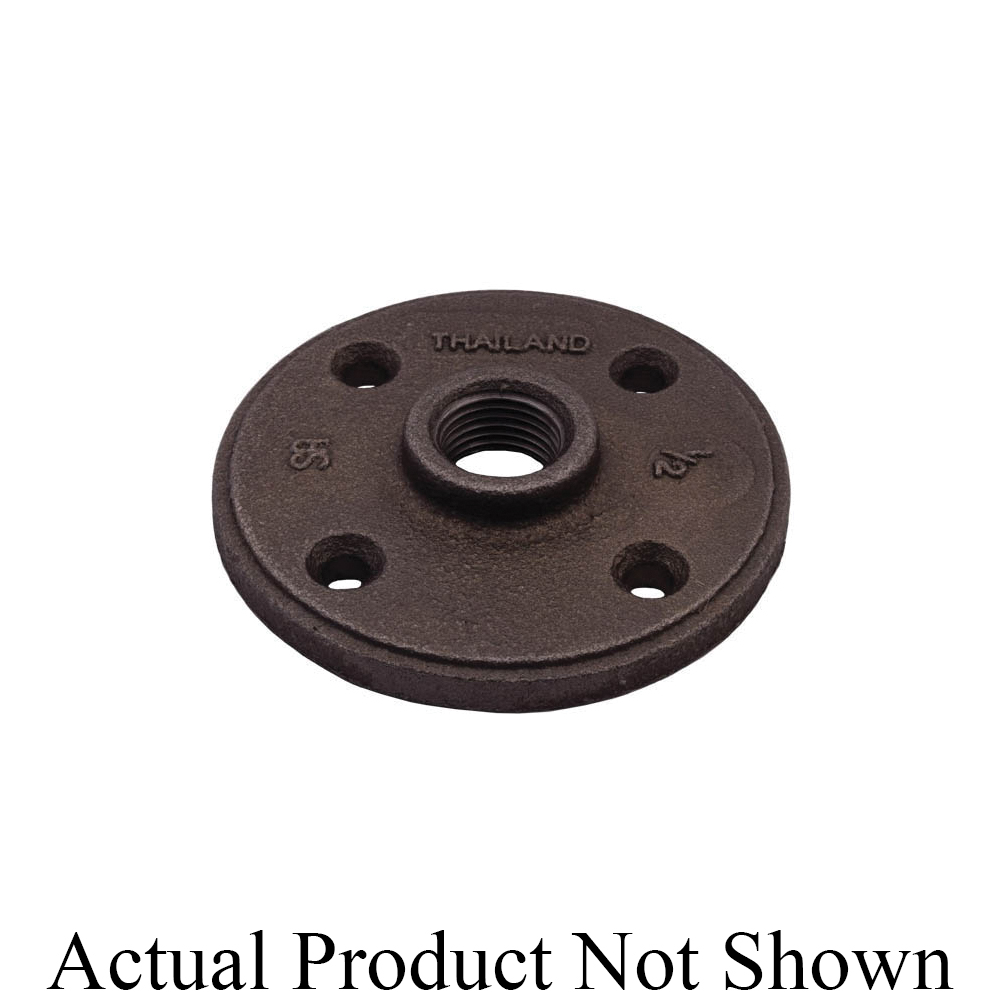

LEGEND Floor Flange, 1 in Nominal, Thread, 150 psi, 150 lb, Malleable Iron, Black Oxide, Import
- Key configurations are UL listed HHXX.EX15226 and HHXX7.EX15226 fire main equipment, pipe fittings, intended for use in water supply piping systems and fire suppression system piping in accordance with NFPA standards
- Manufactured using the latest technologies for material consistency and dimensional tolerances, they're cast using an electric induction furnace, to ensure that the material is at optimum casting temperature longer
- Classified as a class 150 malleable iron fitting, (rated at 150 psi) they are also test pressure rated at 730 psi and have an achieved burst pressure rating of 5000 psi (pressure increased to failure), as tested, they maintain a 4.8 to 1 pressure safety ratio
- SA thailand fittings
