| Domestic/Import |
: |
Import |
| End Style |
: |
Thread |
| Finish |
: |
Black |
| Fitting/Connector Type |
: |
Plug |
| Lee_Descr |
: |
I12SPLUGBK - 1/2 STEEL PLUG BLACK |
| Lee_UPC |
: |
66254502851 |
| Material |
: |
Malleable Iron |
| Method of Manufacture |
: |
Cast |
| Nominal Size |
: |
1/2 in |
| Pressure Class |
: |
150 lb |
| Pressure Rating |
: |
150 psi |
| Temperature Rating |
: |
200 deg F |
| Type |
: |
Square Head |
| UPC_Lee |
: |
66254502851 |
| Weight |
: |
0.1 lb |
| Width |
: |
0.85 in |
| Length |
: |
1.0 in |
| Volume |
: |
0.64 cu-in |
| Height |
: |
0.75 in |

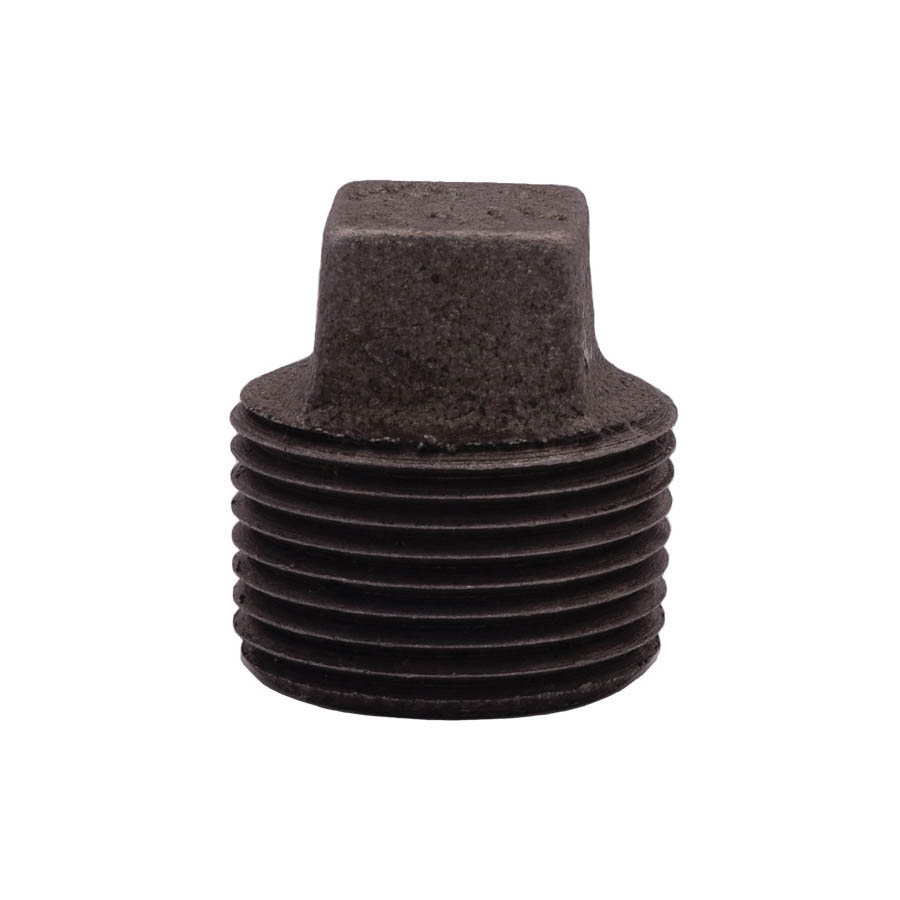

LEGEND Plug, Square Head, Plug Fitting/Connector, 1/2 in Nominal, Thread End Style, 150 lb Pressure Class, 150 psi Pressure, Cast Method of Manufacture, Malleable Iron, Black, 200 deg F, Domestic/Import: Import
- Produced in an ISO 9001 registered facility
- Manufactured in compliance with all applicable ASTM and ANSI standards
- Manufactured using the latest technologies for material consistency and dimensional tolerances, they're cast using an electric induction furnace, to ensure that the material is at optimum casting temperature longer
- Classified as a Class 150 malleable iron fitting, (rated at 150 psi) they are also test pressure rated at 730 psi and have an achieved burst pressure rating of 5000 psi (pressure increased to failure), as tested, they maintain a 4.8 to 1 pressure safety ratio
- Packaged in double corrugated, oil-resistant boxes marked with an english description
- All labels are color coded, denoting either a black or galvanized fitting
- Key configurations are UL listed: HHXX.EX15226 and HHXX7.EX15226 fire main equipment - pipe fittings; intended for use in water supply piping systems and fire suppression system piping in accordance with NFPA standards
