| Domestic/Import |
: |
Import |
| End Style |
: |
Pack Joint (CTS) x MNPT |
| Fitting/Connector Type |
: |
Coupling |
| Lee_Descr |
: |
313-210NL - LEGEND 1 X 3/4 PACK JOINT MALE ADAPTER T-4300NL |
| Lee_UPC |
: |
66254508430 |
| Length |
: |
3-1/4 in |
| Material |
: |
Bronze |
| Method of Manufacture |
: |
Cast |
| Nominal Size |
: |
1 x 3/4 in |
| Pressure Rating |
: |
100 psi |
| Series |
: |
T-4300NL |
| Temperature Rating |
: |
100 deg F |
| UPC_Lee |
: |
66254508430 |
| Weight |
: |
0.77 lb |
| Width |
: |
2.6 in |
| Length |
: |
4.45 in |
| Volume |
: |
26.61 cu-in |
| Height |
: |
2.3 in |

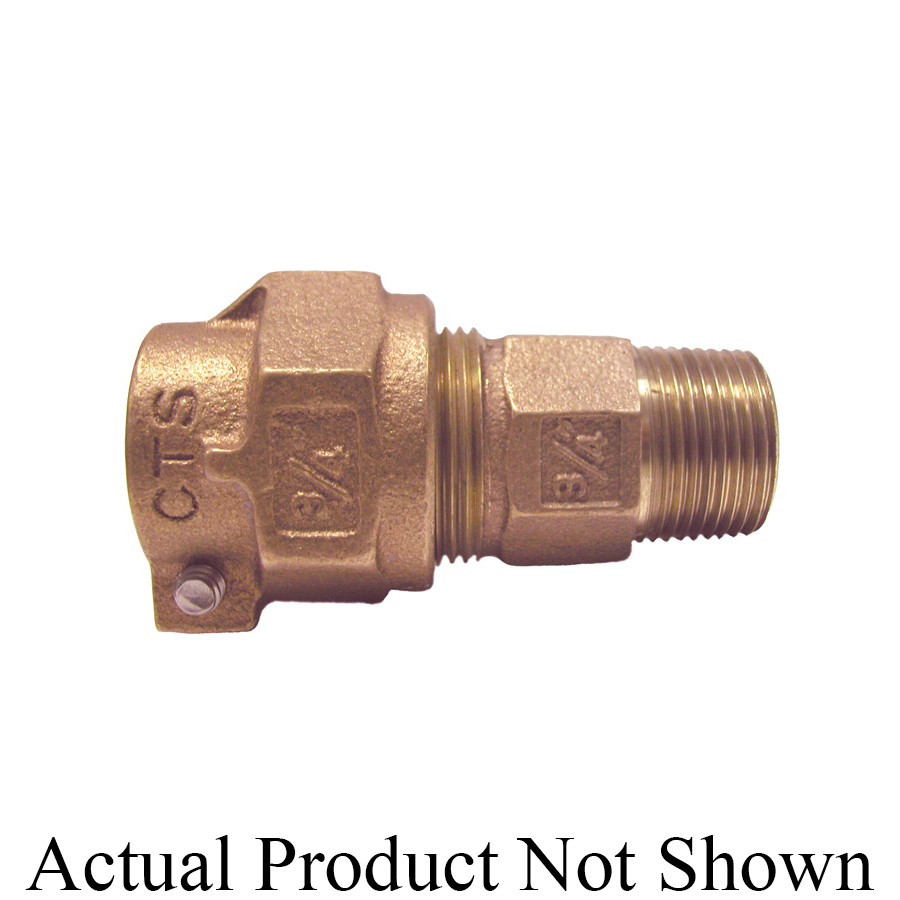

LEGEND 313-210NL Coupling, Lead Free, Series: T-4300NL, Fitting/Connector Type: Coupling, 1 x 3/4 in Nominal, Pack Joint (CTS) x MNPT, 3-1/4 in Length, 100 psi, 100 deg F, Bronze, Cast, Import
- Lead free design is suitable for all no lead potable water installations, in full compliance of the lead-free plumbing law
- CTS pack-joint end connections provide the maximum pullout resistance against internal pressure variations and backfilling stress
- Insert stiffeners (Model T-4500, sold separately) are required at each pack-joint connection, when installing polyethylene (PE) plastic tubing
- Manufactured in full compliance to AWWA C800 Specifications (current revision)
- Male pipe thread end connections comply with ANSI/ASME B1.20.1
- Types K or L copper water tubing compliant with ASTM B88
- Cast bronze pack-joint nut
- Buna-N (NBR) nitrile rubber pack-joint gasket
- Nylon resin pack-joint anti-friction ring
- AISI grade 304 stainless steel pack-joint clamp bolt
- Polyethylene plastic tubing compliant with ASTM D2737 SDR 9 (Model T-4500 insert stiffener required)
