| Domestic/Import | : | Import |
| End Style | : | MNPT x CPVC |
| Fitting/Connector Type | : | Adapter |
| Hex Size | : | 1.27 in |
| Lee_Descr | : | 302-434 - LEGEND 3/4IN MNPT X CPVC STAINLESS STEEL TRANSITION FITTING |
| Lee_UPC | : | 66254510142 |
| Length | : | 2.17 in |
| Material | : | 304 Stainless Steel |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 100 psi |
| Temperature Rating | : | 180 deg F |
| UPC_Lee | : | 66254510142 |
| Weight | : | 0.19 lb |
| Width | : | 4.65 in |
| Length | : | 4.8 in |
| Volume | : | 31.25 cu-in |
| Height | : | 1.4 in |
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

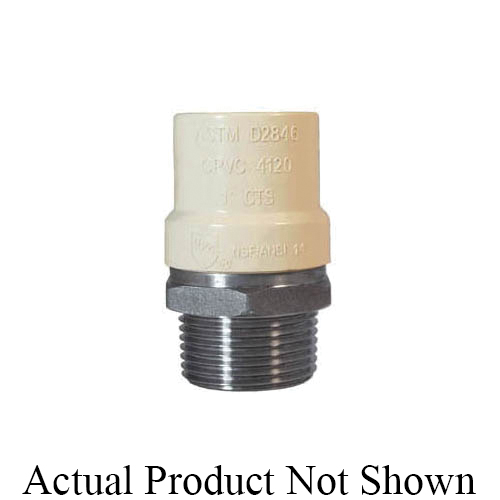

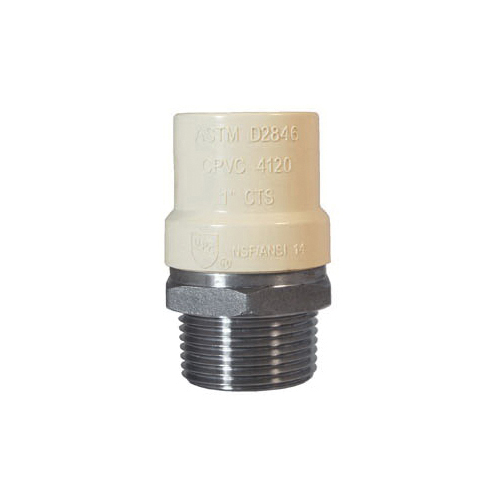

LEGEND Pipe Adapter, Lead Free, Fitting/Connector Type: Adapter, 3/4 in Nominal, MNPT x CPVC, 1.27 in Hex, 2.17 in Length, 100 psi, 304 Stainless Steel, 180 deg F, Import
- Permits simple and convenient transition between threaded piping and CPVC tubing
- Mold-over, channel-set o-ring seal design between the CPVC resin and stainless steel provides a positive, leak free seal and is superior to adhesive-type or mechanical crimp designs
- Eliminates the need for multiple adapters and subsequently, their additional leak paths and run length, ideal for confined applications
- Naturally lead free
- Virgin CPVC-41 resin, TempRite® 88096 solvent weld socket tubing adapters, NBR (Buna-N) rubber o-ring, investment cast stainless steel pipe thread adapters
