| Body Material |
: |
Brass |
| Dimensions |
: |
2.52 in L |
| Domestic/Import |
: |
Import |
| End Style |
: |
Compression |
| Lee_Descr |
: |
38.58SSCCOMPLF - 3/8ODX 5/8OD STRAIGHT STOP LEAD FREE COMPRESSION 114-704NLB CHROME |
| Lee_UPC |
: |
66254513086 |
| Media |
: |
Water |
| Nominal Size |
: |
5/8 x 3/8 in |
| Pressure Rating |
: |
125 psi CWP |
| Series |
: |
T-596NL |
| Softgoods Material |
: |
NBR |
| Temperature Rating |
: |
120 deg F |
| Trim Material |
: |
Brass/EPDM |
| Type |
: |
1/4-Turn Ball |
| UPC_Lee |
: |
66254513086 |
| Weight |
: |
13.68 lb |
| Width |
: |
8.45 in |
| Length |
: |
11.25 in |
| Volume |
: |
660.68 cu-in |
| Height |
: |
6.95 in |

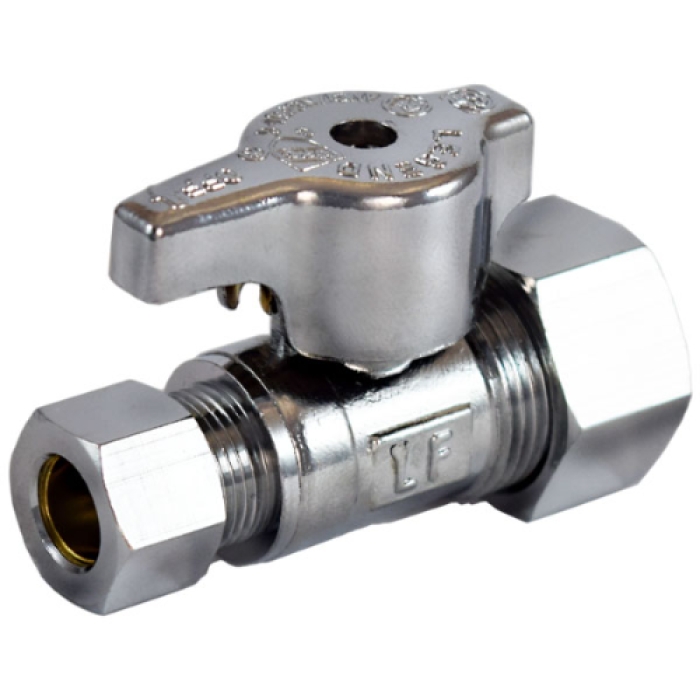

LEGEND Straight Stop Valve, Lead Free 1/4-Turn Ball, Series: T-596NL, 5/8 x 3/8 in Nominal, Compression, 125 psi CWP, Media: Water, Brass Body, Brass/EPDM Trim, NBR Softgoods, 120 deg F, 2.52 in L, Import
- Lead-free design is suitable for all lead-free potable water installations, in full compliance of all lead-free plumbing laws
- 1/4-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening
- The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs
- Compact, chrome plated, forged brass bodies are both durable and decorative
- An ideal upgrade replacement for worn, leaking stops that won't close completely
- Trim material - brass stem, EPDM seat
- Softgoods material - NBR stem O-ring
