| Amperage Rating | : | 0.55 to 0.75 A |
| Bearing Type | : | Ceramic Radial/Carbon Thrust |
| Dimensions | : | 5-1/4 in W x 6-1/2 in H |
| Frequency Rating | : | 60 Hz |
| Impeller Type | : | Composite PES |
| Lee_Descr | : | 59896341 - GRUNDFOS - UPS15-58FC 1/2IN - 1 - 1 1/4" FLANGED - CAST IRON RECIRCULATING PUMP - 3-SPEED - 1/25 HP - 115 VOLT - 19.5 MAX FEET OF HEAD - 17 GPM MAX |
| Lee_UPC | : | 57003958552 |

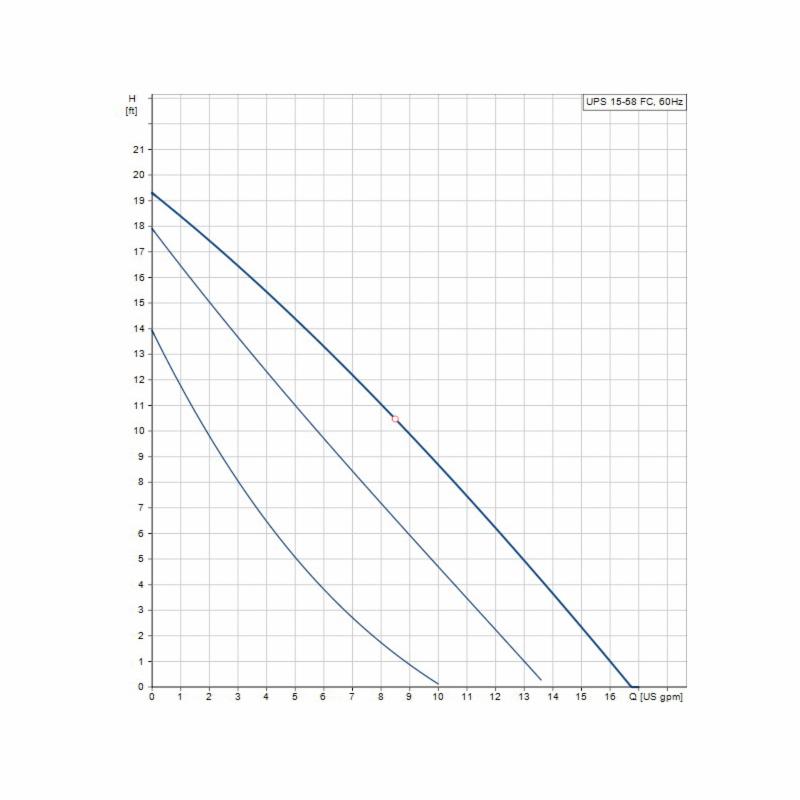

| Maximum Head | : | 19.36 ft |
| Maximum Pressure | : | 145 psi |
| Phase | : | 1 |
| Power Rating | : | 87 W |
| Series | : | UPS |
| Temperature Rating | : | 140 deg F |
| Type | : | Canned Rotor |
| UPC_Lee | : | 57003958552 |
| Voltage Rating | : | 115 V AC |
| Weight | : | 2.84 lb |
UPS pumps constitute a complete range of 3-speed circulator pumps, available both in 50 and 60 Hz. The pumps can be used in both open and closed systems. UPS pumps are of the canned rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos VersaFlo® Circulator Pump, Canned Rotor, Series: UPS, 19.36 ft Maximum Head, 87 W, 115 V AC, 0.55 to 0.75 A, 60 Hz, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Ceramic Radial/Carbon Thrust Bearing, 5-1/4 in W x 6-1/2 in H
- Maintenance-free
- Low noise and low energy
- Complete range and wide range of accessories
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller
- No additional motor protection is required
- Non-electronically controlled circulator pumps for domestic building with speed control
- Removable check valve
- Flange pipe connection
- Cast iron pump housing
- Small stator
- 3-speed motor
