575996

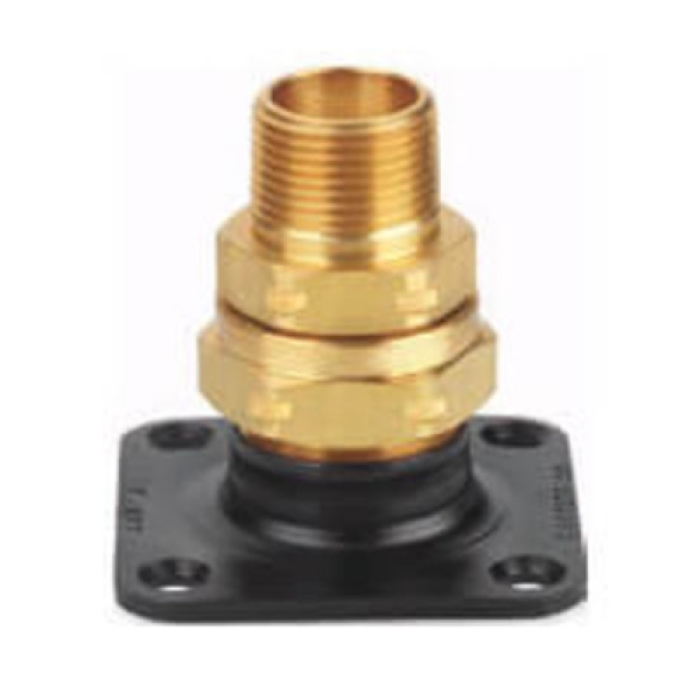

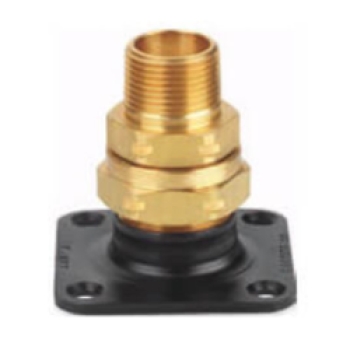

Gastite® FlashShield™ XR3TRM-11-12 XR3™ Termination Fitting With Termination Fitting, 3/4 in Nominal, Compression x MNPT End Style, 2.7 in L, Brass
Manufacturer: Titeflex
Brand: Gastite®
Lee Supply #: 575996
Manufacturer Part #: XR3TRM-11-12
UPC: 84088902103
Customer Part #:
Sold As: 12/BX
Carmel
| Dimensions | : | 2-5/8 in OD |
| End Style | : | Compression x MNPT |
| Lee_Descr | : | XR3TRM-11-12 - GASTITE 3/4IN TERM. FITTING-SQUARE FLANGE - 3/4IN NPT |
| Lee_UPC | : | 84088902103 |
| Length | : | 2.7 in |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Series | : | XR3™ |
| UPC_Lee | : | 84088902103 |
| Weight | : | 8.7 lb |
XR3 fittings are designed with a patent pending feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no O-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.
Gastite® FlashShield™ Termination Fitting, Series: XR3™, 3/4 in Nominal, Compression x MNPT, 2.7 in Length, Brass, 2-5/8 in OD
- Metal lock for enhanced continuity
- Tool-less flare design, no special tools are required
- Metal-to-metal seal, with no split rings, O-rings or gaskets
- Self-guiding assembly to ensure a perfectly even flare
- Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut
- All components are fully reusable
- Termination fittings create a fixed-point stub-out on a wall or floor surface
- MNPT adapter, bushing, termination nut and corrosion-resistant steel flange
