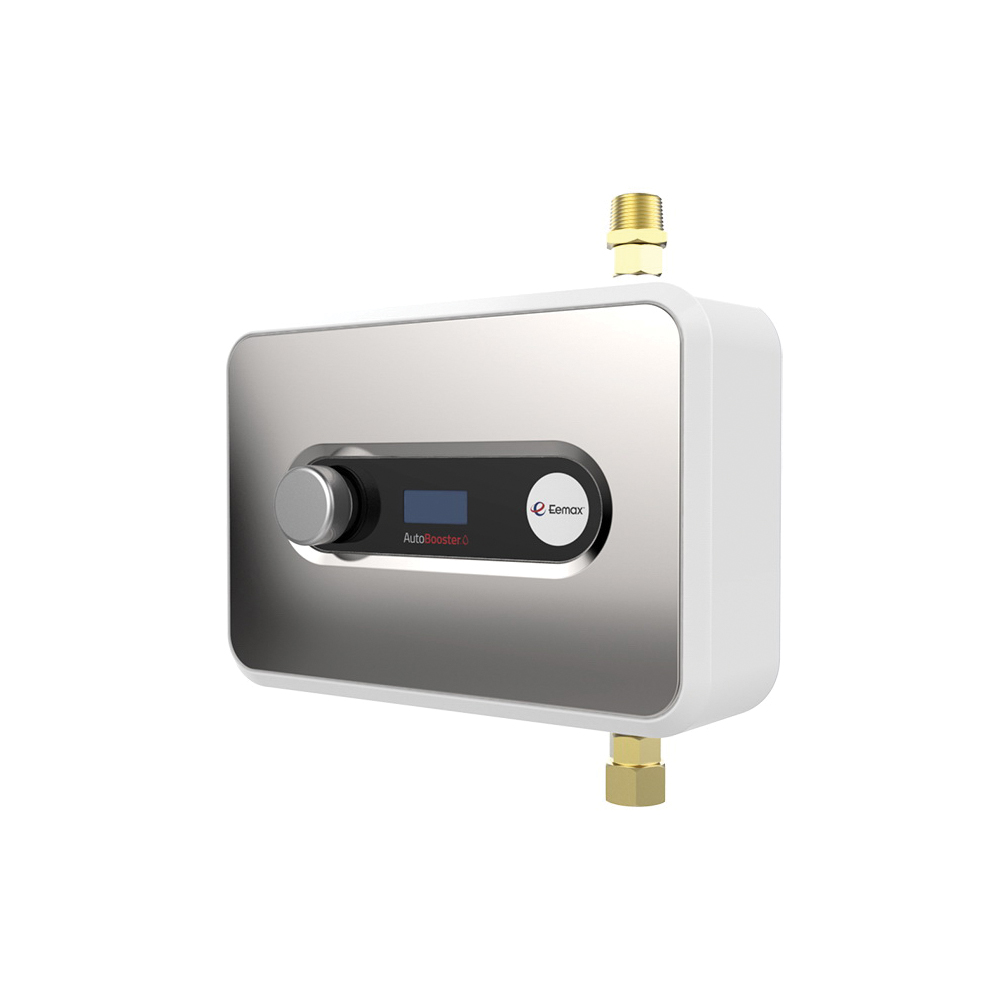

Eemax™ HATB007240 AutoBooster™ Electric Tankless Water Heater With (1) Aerator, 240 V AC, 7200 W, 1 ph, 3/4 in FNPT x 3/4 in MNPT Water, 30 A, Commercial/Residential/Dual: Commercial
Manufacturer: Eemax
Brand: Eemax™
Lee Supply #: 54920
Manufacturer Part #: HATB007240
UPC: 9165492056
Customer Part #:
Carmel
| ASME Yes/No | : | No |
| Amperage Rating | : | 30 A |
| Commercial/Residential/Dual | : | Commercial |
| Dimensions | : | 11-1/2 in W x 3-3/4 in D x 8 in H |
| Domestic/Import | : | Import |
| Energy Factor | : | 0.99 |
| Flow Rate | : | 0.3 gpm |
| Lee_Descr | : | HATB007240 - EEMAX ELECTRIC AUTOBOOSTER FOR WATER HEATER |
| Lee_UPC | : | 9165492056 |
| Mounting Type | : | Wall |
| Phase | : | 1 |
| Power Rating | : | 7200 W |
| Pressure Rating | : | 25 to 150 psi |
| Series | : | AutoBooster™ |
| Temperature Rating | : | 80 to 140 deg F |
| UPC_Lee | : | 9165492056 |
| Voltage Rating | : | 240 V AC |
| Water Connection | : | 3/4 in FNPT x 3/4 in MNPT |
| Wire Size | : | 10 AWG |
Eemax™ Electric Tankless Water Heater With (1) Aerator, Series: AutoBooster™, 240 V AC, 30 A, 7200 W, 1 ph, 0.3 gpm, 3/4 in FNPT x 3/4 in MNPT Water Connection, Energy Factor: 0.99, 10 AWG Wire, Wall Mount, 25 to 150 psi, 80 to 140 deg F, ASME Yes/No: No, 11-1/2 in W x 3-3/4 in D x 8 in H, Commercial Commercial/Residential/Dual, Import
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Select models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow
- Easy installation - Simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- 0.3 gpm turn-on
- Immersion element
- Bottom inlet top outlet plumbing configuration
- Pre-heated or cold water inlet
- Replaceable cartridge insert heating element
