| Lee_Descr |
: |

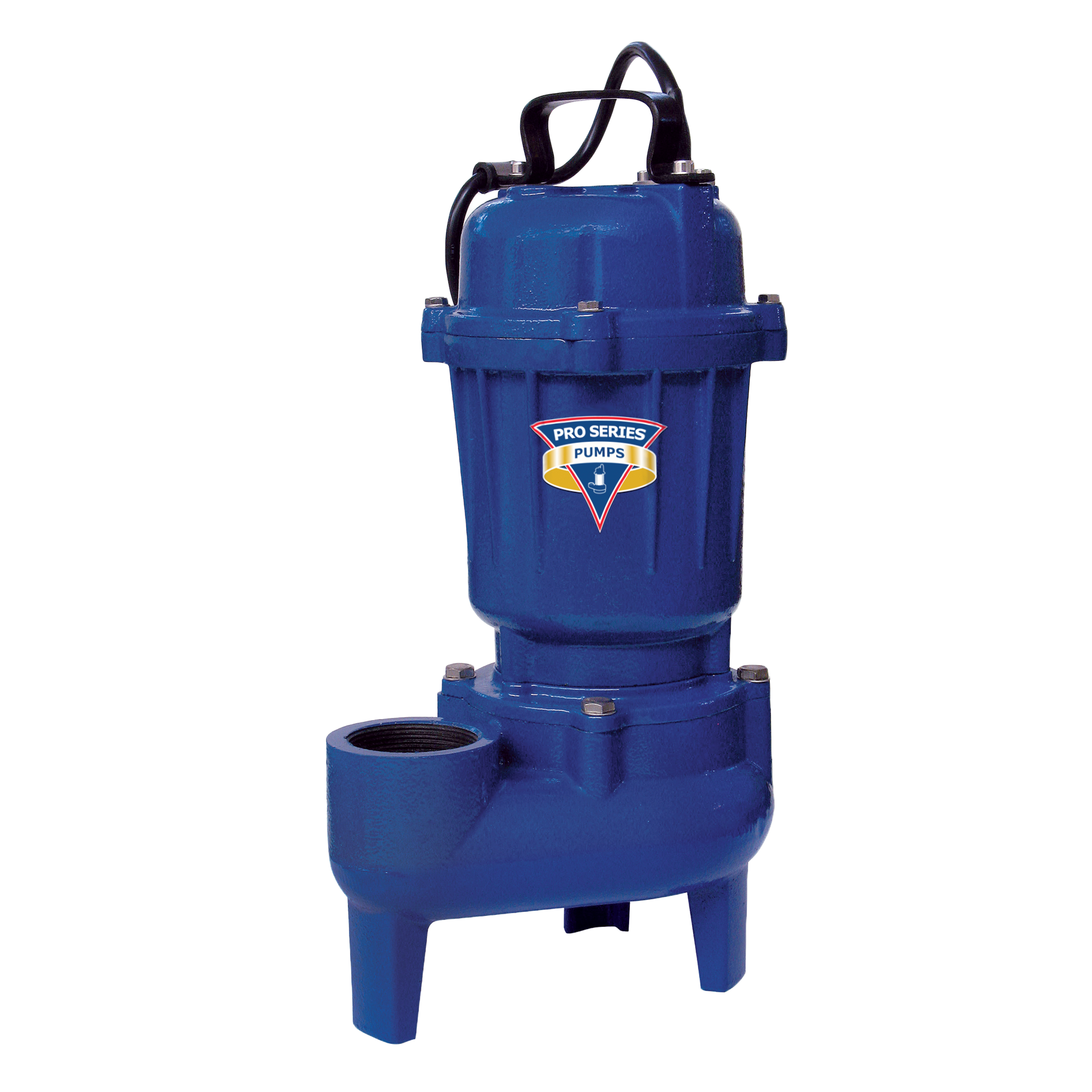

E7055-NS - GLENTRONICS 1/2HP SUBMERSIBLE SEWAGE PUMP CAST IRON |
| Lee_UPC |
: |
71730112205 |
| Section |
: |
Pumps |
| UPC_Lee |
: |
71730112205 |
| Weight |
: |
37.0 |
| Width |
: |
12.0 in |
| Length |
: |
7.0 in |
| Height |
: |
18.25 in |
The vertical float switch contains a single large float. Water will lift the float by a 1/2", which will activate the pump. As the pump evacuates the water from the pit, the float will drop. The pump will run for an additional 10 seconds to evacuate the pit completely after the float drops. Note: There are two rubber stoppers on the float switch rod. Do not remove or alter their position as it will disrupt the timing of the controller and how long the pump runs. Note: When mounting the float switch, position the bottom of the float at the height you want the pump to activate
- Energy-efficient permanent split capacitor motor
- Handle 2-inch solids with 2-inch discharge
- Continuous-duty rated
- Water-cooled motor (no cooling oil)
- Electroplated steel shaft
- Stainless-steel fasteners
- Dual carbon/ceramic shaft seals plus Buna N seal
- Upper and lower sealed ball bearings
- 10-foot power cord
