| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | NPT |
| Inlet to Outlet Length | : | 4.15 in |
| Lee_Descr | : | 23883-0045 CASH ACME 3/4IN BRONZE PRESSURE REDUCER VALVE XL CAN ALSO BE A 34-NR3XL |
| Lee_UPC | : | 69728523883 |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 45 psi |
| Series | : | EB45 |
| Softgoods Material | : | EPDM O-Ring |
| Temperature Rating | : | 180 deg F |
| Top to Inlet Center | : | 4.37 in |
| Trim Material | : | Brass/Stainless Steel |
| Type | : | Single-Union |
| UPC_Lee | : | 69728523883 |
| Weight | : | 1.37 lb |
| Width | : | 5.5 in |
| Length | : | 4.75 in |
| Height | : | 2.0 in |
The EB-45 Series is a lead-free1 half-cartridge based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union in 1/2 in through 2in sizes. A connection for a pressure gauge is also available for 3/4 in and 1in models. The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2in, 3/4in, and 1in). The EB-45 pressure regulators are supplied by the factory with a standard delivery Setting of 45 psi. The outlet pressure can be adjusted from 10-70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 degF) water service.

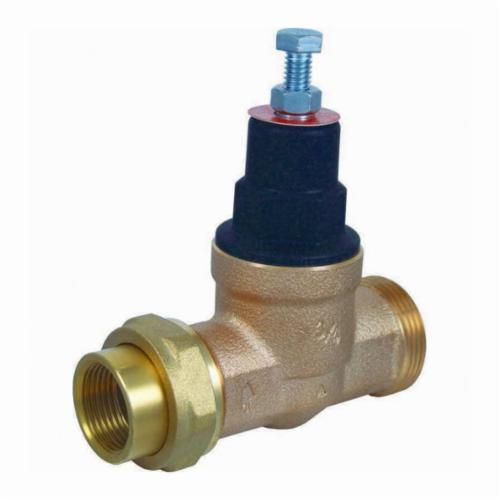

Cash Acme® Pressure Regulating Valve, Single-Union, Series: EB45, 3/4 in Nominal, NPT, 45 psi, 180 deg F, Media: Water, 4.15 in Inlet to Outlet Length, 4.37 in Top to Inlet Center, Bronze Body, Brass/Stainless Steel Trim, EPDM O-Ring, Domestic
- Modular cartridge design reduces the number of parts requiring service-quick and easy service/repair
- Rugged bronze body-superior reliability, improved user safety
- Compact pressure reducing and regulating valves-designed for small and economic considerations
- By-pass mechanism integral with the cartridge-no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping-specify and install with confidence
- Lead free
- 400 psi maximum inlet pressure
- 10 to 70 psi outlet pressure range
- Reinforced EPDM diaphragm
- Stainless steel strainer screen
