| Body Material | : | Brass |

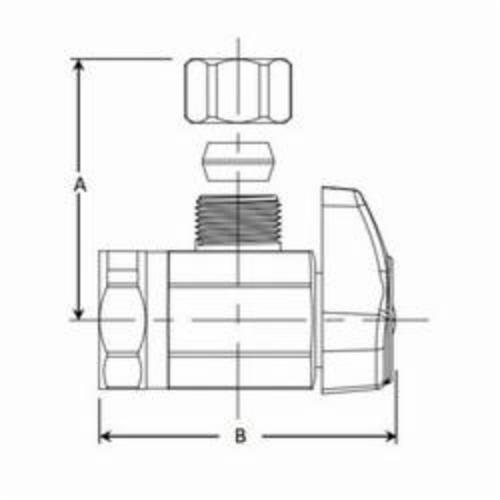

| Dimensions | : | 1.09 x 2.12 in |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT x Compression |
| Finish | : | Polished Chrome |
| Lee_Descr | : | BCG2R15XC - 3/8OD X 3/8 ANGLE STOP LF IPS CHROME |
| Lee_UPC | : | 2661314514 |
| Media | : | Water |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 125 psi |
| Series | : | G2™ |
| Softgoods Material | : | Santoprene Stem Barrel/EPDM Stem O-Ring |
| Temperature Rating | : | 40 to 140 deg F |
| Trim Material | : | C36000 Brass |
| Type | : | 1/4 Turn |
| UPC_Lee | : | 2661314514 |
| Weight | : | 11.7 lb |
Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.

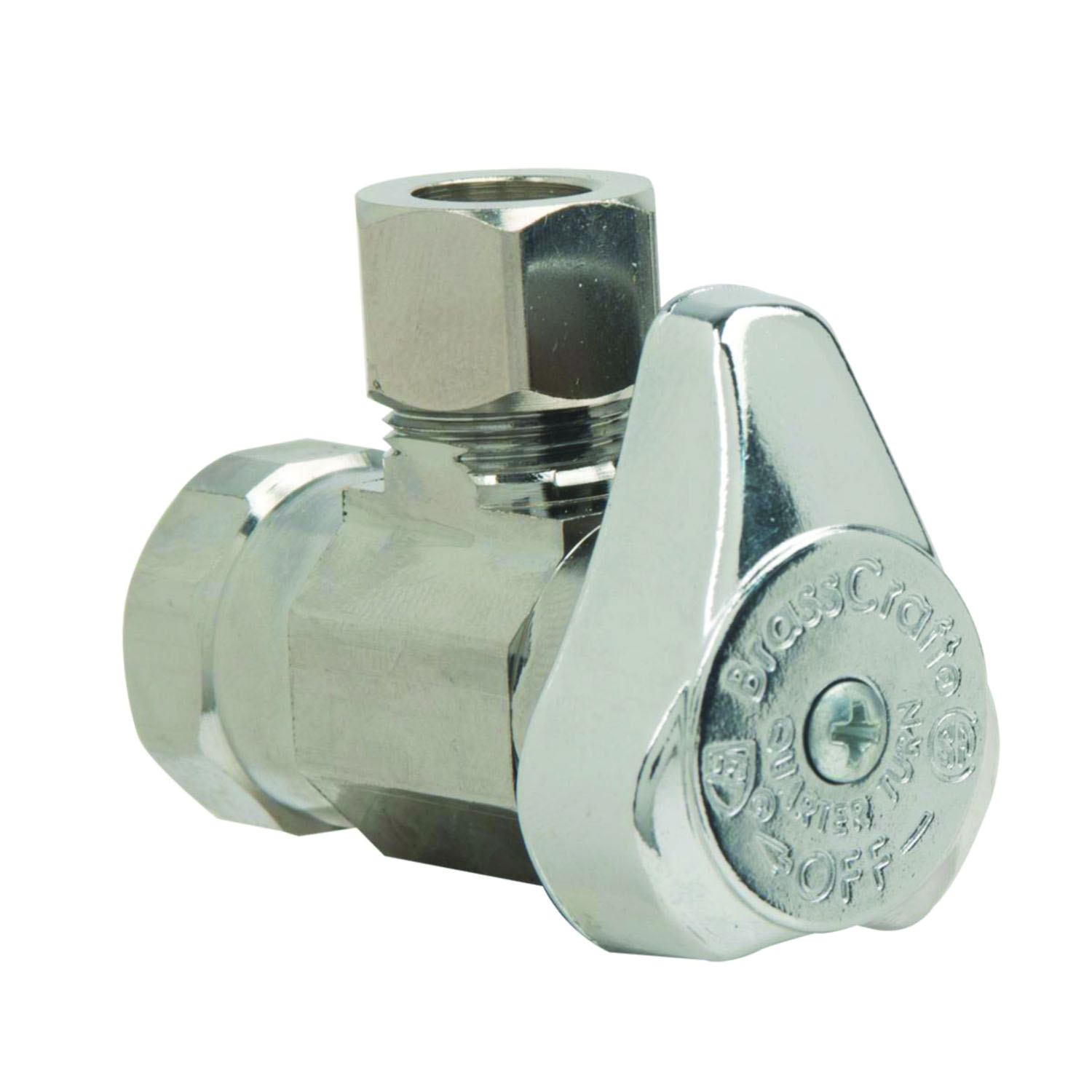

BrassCraft® Angle Stop, 1/4 Turn, Series: G2™, 3/8 in Nominal, FNPT x Compression End Style, 125 psi Pressure, Media: Water, Brass Body, C36000 Brass Trim, Santoprene Stem Barrel/EPDM Stem O-Ring Softgoods, 40 to 140 deg F, 1.09 x 2.12 in Dimension, Polished Chrome, Domestic
- Full flow operation with no waterway obstructions
- Corrosion-resistant handle is plated in an attractive chrome plated finish
- Easy-to-remove handle with screw attachment protects against accidental operation during rough-in
- Installation ready with pre-assembled tube insert
- No special installation tools required
- For use with Copper, PEX and CPVC
- C36000 brass
