| Ball Material |
: |
304 Stainless Steel |
| Body Material |
: |
Brass |
| End Style |
: |
Press-Fit |
| Finish |
: |
Polished Chrome |
| Inlet to Outlet Length |
: |
3.6 in |
| Lee Group |
: |
Ball Valves |
| Lee_Descr |
: |
13515 - BMI 3/4 PRESS-FIT BALL VLV 250WOG LF |
| Lee_UPC |
: |
77770113515 |
| Material |
: |
Brass |
| Nominal Size |
: |
3/4 in |
| Port Type |
: |
Full |
| Pressure Rating |
: |
250 psi |
| Softgoods Material |
: |
PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring |
| Temperature Rating |
: |
-20 to 300 deg F |
| Top to Inlet Center |
: |
2.09 in |
| Trim Material |
: |
Zinc Plated Steel Handle Nut/Lock Washer, Steel Handle, C37700 Lead-Free Brass Packing Nut/Stem |
| Type |
: |
Lead-Free Straight |
| UPC_Lee |
: |
77770113515 |

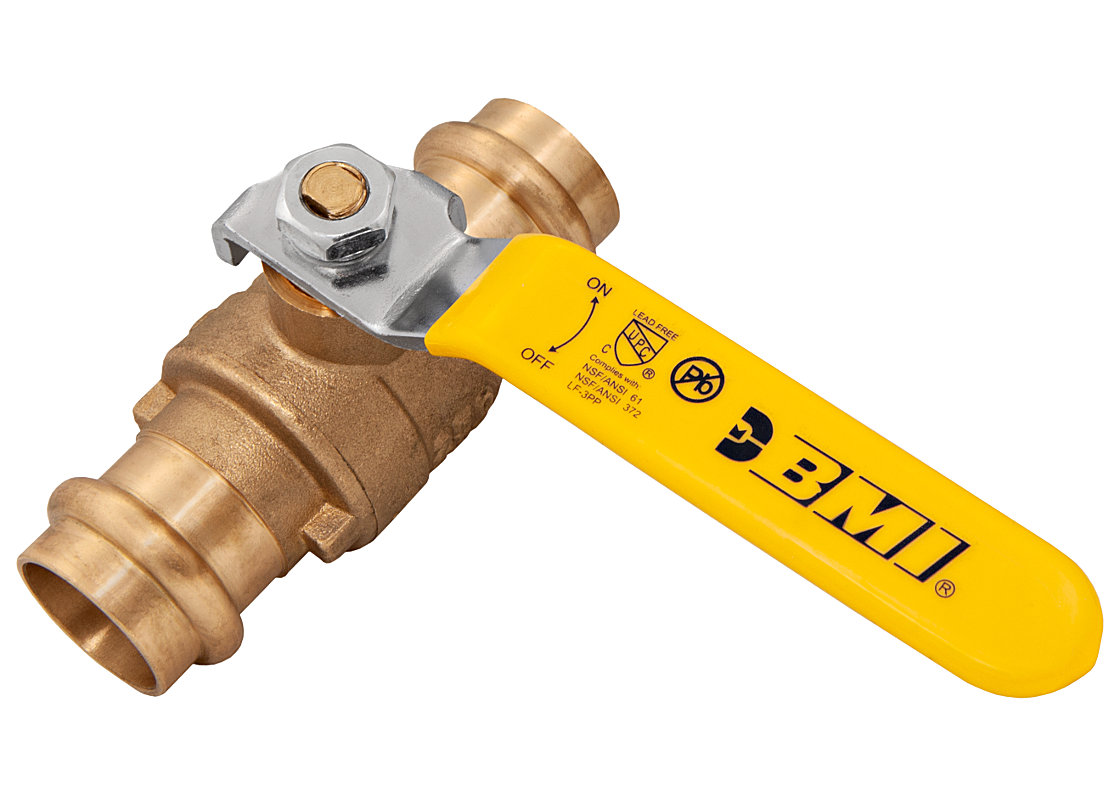

BMI® Ball Valve, Lead-Free Straight, 3/4 in Nominal, Press-Fit End Style, 250 psi Pressure, -20 to 300 deg F, Full Port, 304 Stainless Steel Ball, 3.6 in Inlet to Outlet Length, 2.09 in Top to Inlet Center, Brass Body, Zinc Plated Steel Handle Nut/Lock Washer, Steel Handle, C37700 Lead-Free Brass Packing Nut/Stem Trim, PTFE Packing/Seat, NBR Stem O-Ring, EPDM O-Ring Softgoods, Polished Chrome
- High corrosion resistance chrome plated handle
- Stem seal, O-ring and adjustable packing nut
- Blow out proof stem assembly
- Compatible with all major press tools
-
