650549

133 - LAMBRO 6IN GALVANIZED TRANSITION - 3-1/4IN X 10IN TO ROUND - LONG THROAT

Manufacturer: Lambro
Brand: Lambro
Lee Supply #: 650549
Manufacturer Part #: 133
UPC: 03989900133
Customer Part #:
Carmel

Diameter      :      6 in
Section      :      Transition
Type      :      Transition
Weight      :      6.3 lbs

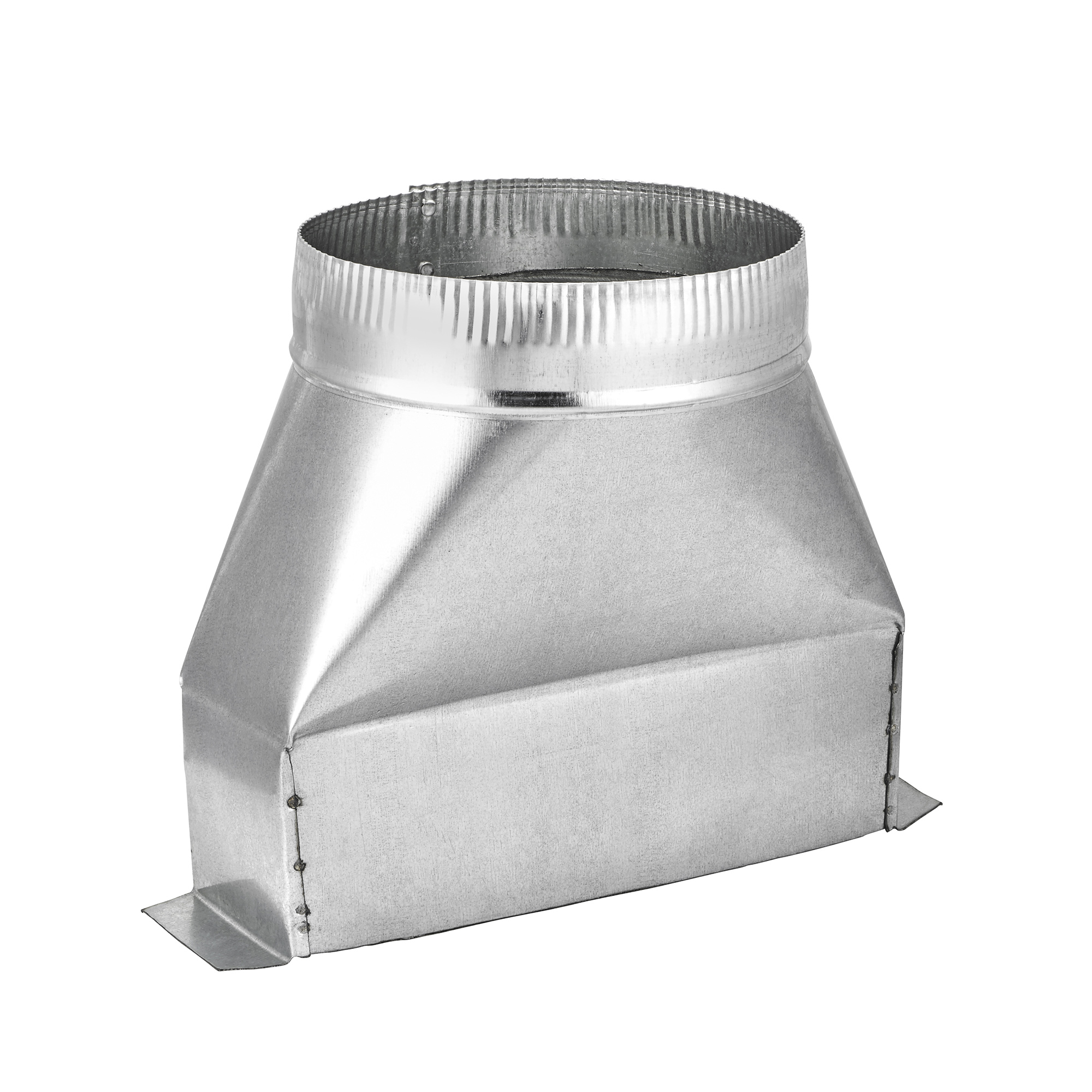

The Lambro 3 1/4 inch x 10 inch to 6 inch round galvanized steel straight register boot used for HVAC systems, floor registers or range hood venting. Installations consist of transitioning from round pipe or flexible insulated duct to rectangular stack duct. The stack boot is made of zinc-coated 30 gauge galvanized steel and provides advanced corrosion protection with pre-installed s-cleats. Install using sheet metal screws (not included) and it is recommended to seal seams with code approved mastic, sealant or duct tape (not included).

  • Made of zinc-coated galvanized steel
  • 30 gauge galvanized steel construction
  • Transitions from 3 1/4 inch x 10 inch rectangular stack duct to 6 inch round pipe
  • Pre-assembled with boot clips and button locks for easy snap-in installation
  • Installs using steel metal screws (not included)
  • Seal seams with code approved mastic, sealant or duct tape (not included)
  • Specification Sheet https://191387ls-beta.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/6-inch-Galvanized-Transition-3.25-inch-x-10-inch-to-Round-Long-Throat.pdf
