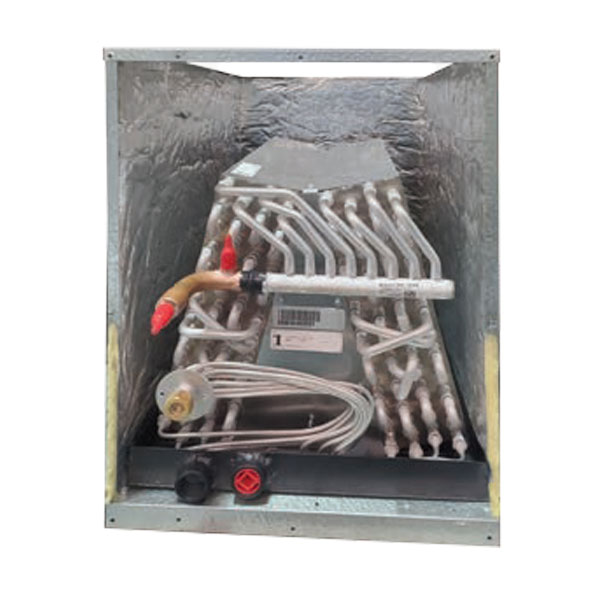

| Lee_Descr | : | DC48B34-210R-479 - ASPEN 4-TON CASED EVAPORATOR COIL A-COIL ALUMINUM R22/410 RIGHT HAND DRAIN 21"W X 24"H X 21.5"D GE GREY COLOR MATCHED |
| Section | : | Evaporator Coils |
| Weight | : | 43.0 |
| Width | : | 21.0 in |
| Length | : | 21.5 in |
| Height | : | 24.0 in |
- Rifled Aluminum tubing, enhanced Aluminum fins
- Air pressure tested at 500 psi, leak tested with helium, then sealed and nitrogen pressurized
- Left- or right-hand refrigerant and plumbing connections
- Externally mounted flowrator body with Schrader valve for hiss-testing
- Heavy duty plastic or metal drain pans
- Embossed galvanized cabinets standard. Cabinet feature furnace connectors
- Upflow without field modification. Downflow application require field kit (included)
- Split access doors in front of cabinet for east service access
- Fully insulated foil-faced insulation
- AHRI certifiable with all brand of AC and HP systems
- ETL listed for use with both R-22 and R-410A when proper metering device is used
- Ten year limited warranty
