| Body Material | : | Cast Bronze |

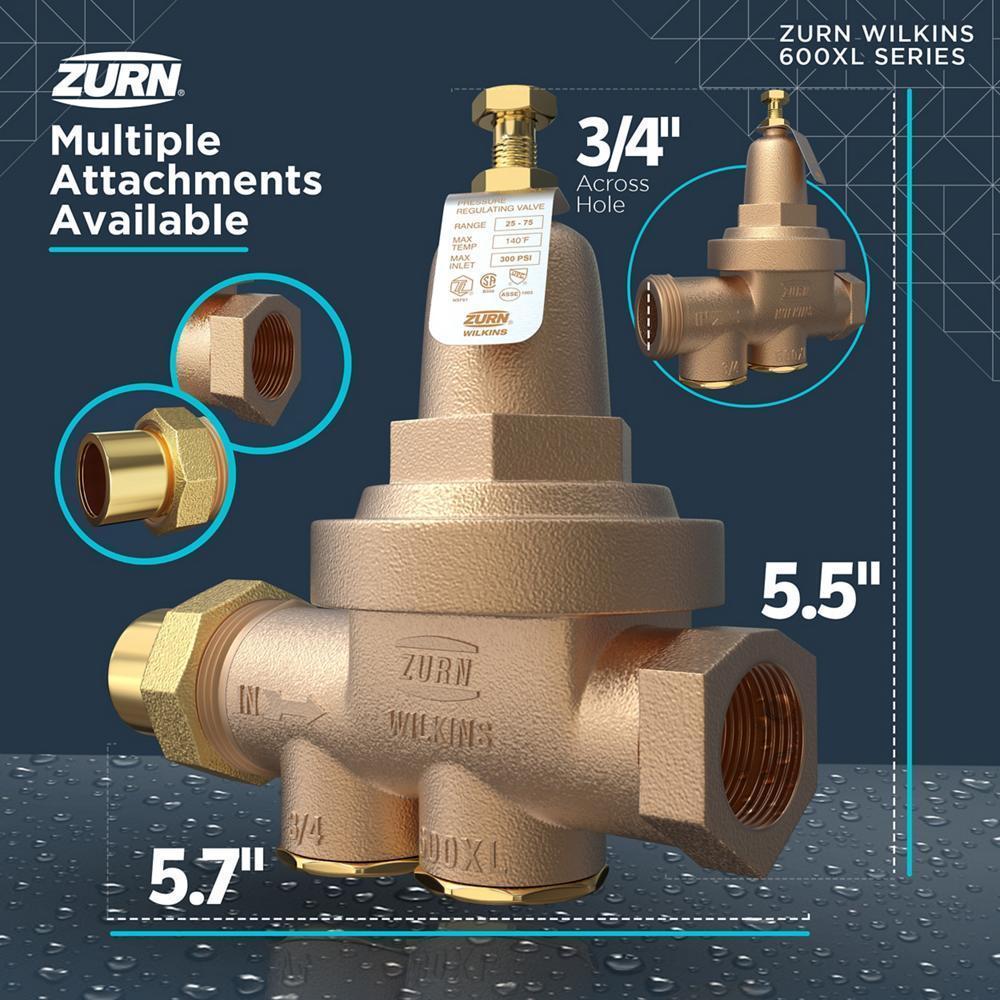

| Dimensions | : | 5-1/2 in H |
| Domestic/Import | : | Import |
| End Style | : | FNPT Union x FNPT |
| Inlet to Outlet Length | : | 5-5/16 in |
| Lee_Descr | : | 34-600XL - ZURN WILKINS PRESSURE REDUCING VALVE LEAD-FREE FNPT UNION X FNPT |
| Lee_UPC | : | 61205202957 |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Range | : | 300 psi |
| Series | : | 600XL |
| Softgoods Material | : | Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket |
| Temperature Rating | : | 140 deg F |
| Trim Material | : | 300 Stainless Steel Seat |
| UPC_Lee | : | 61205202957 |
| Weight | : | 3.0 lb |
| Width | : | 5.5 in |
| Length | : | 2.63 in |
| Volume | : | 120.96 cu-in |

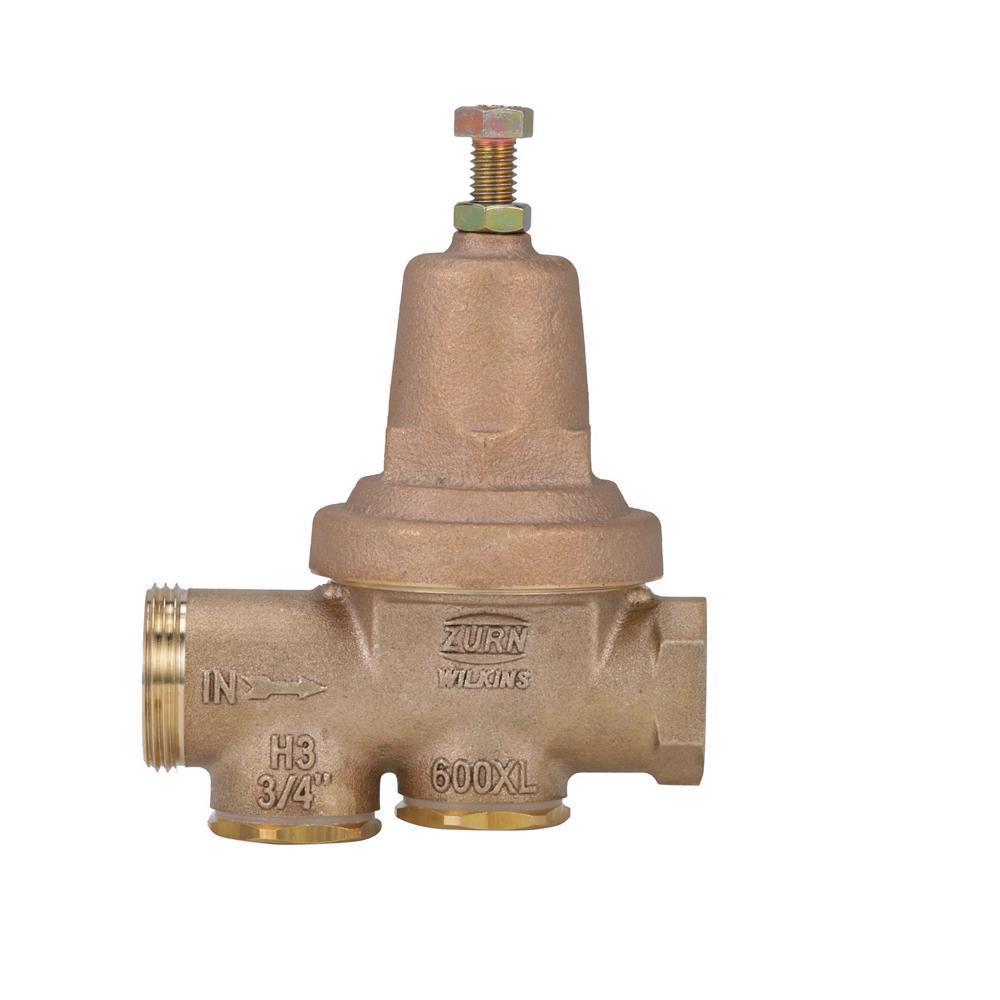

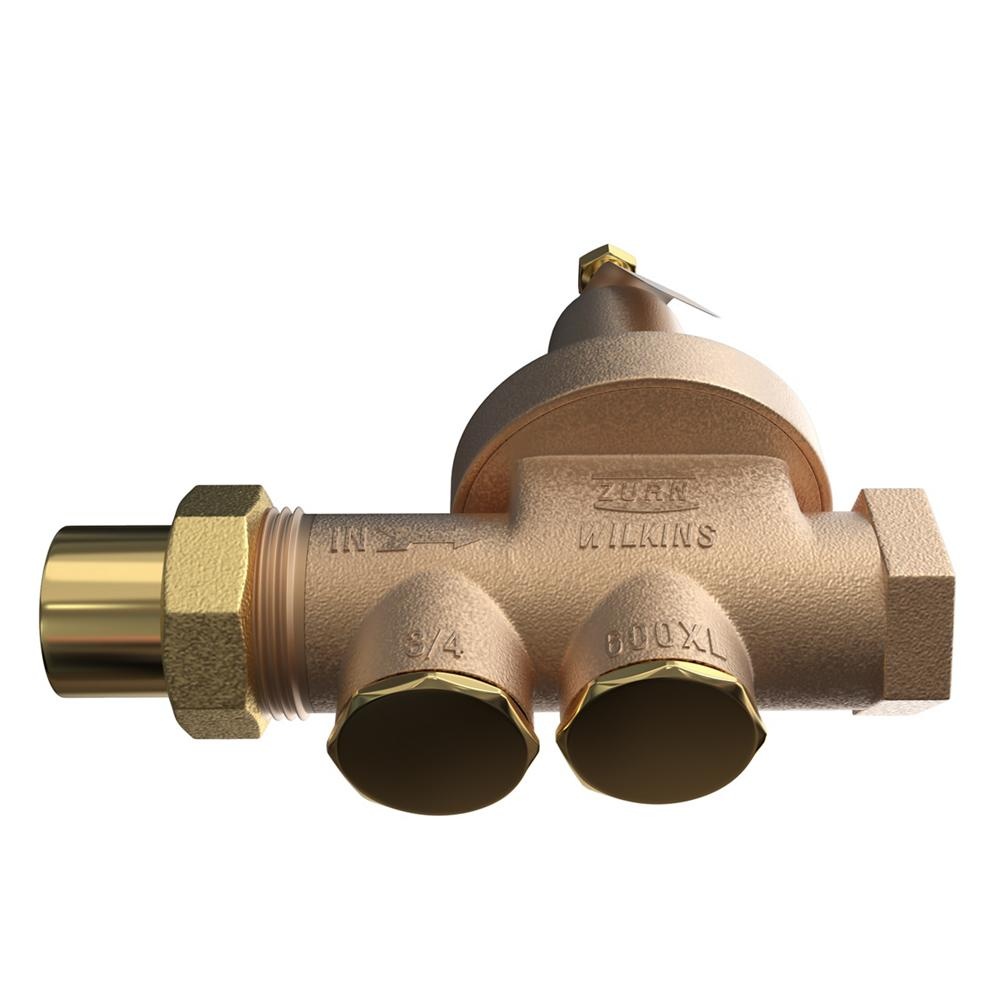

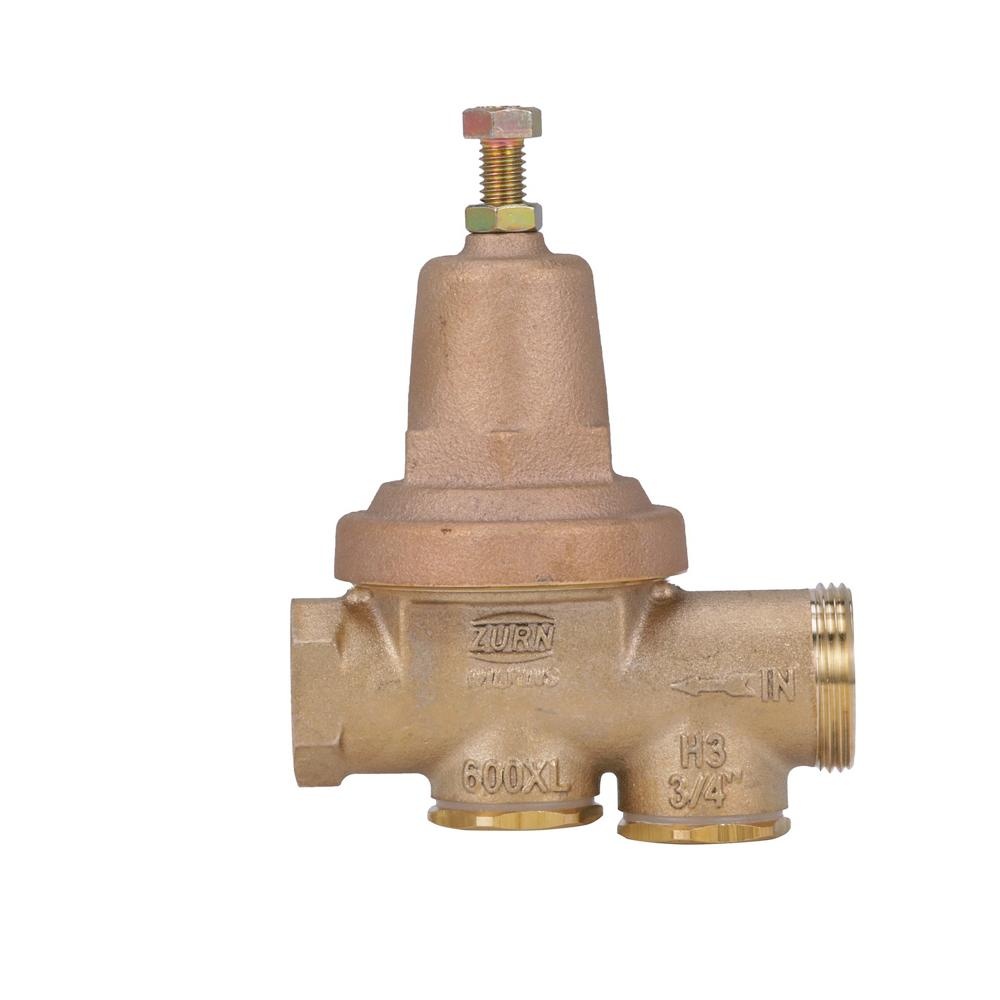

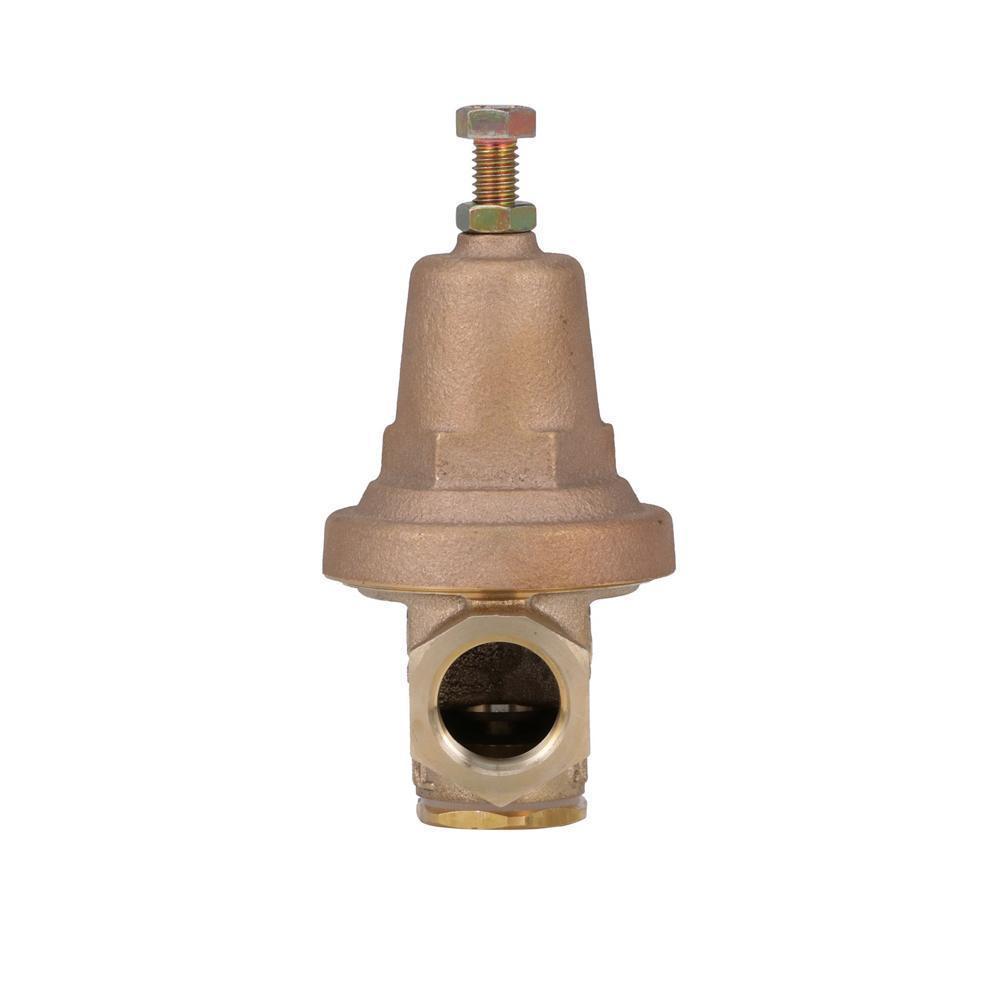

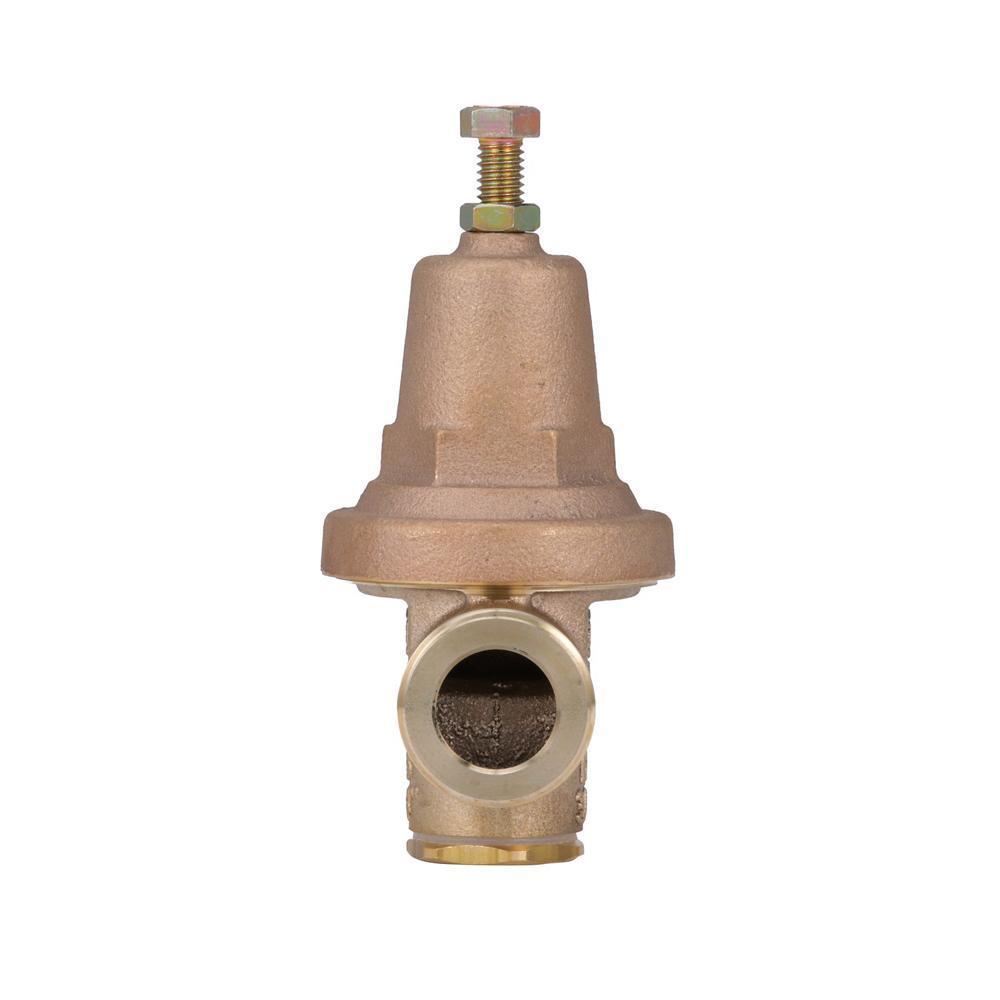

The 3/4" 600XL Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.
Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: 600XL, 3/4 in Nominal, FNPT Union x FNPT, 300 psi, 140 deg F, Media: Water, 5-5/16 in Inlet to Outlet Length, Cast Bronze Body, 300 Stainless Steel Seat Trim, Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket, 5-1/2 in H, Import
- Fiber union gasket ensures fast installation
- Durable construction ensures low maintenance and lifecycle costs
- Inlet pressure changes with balanced design features to protect the system
- Threaded bell provides easier access than bolted on bells
