| Domestic/Import | : | Import |
| End Style | : | PEX Barb x FNPT |

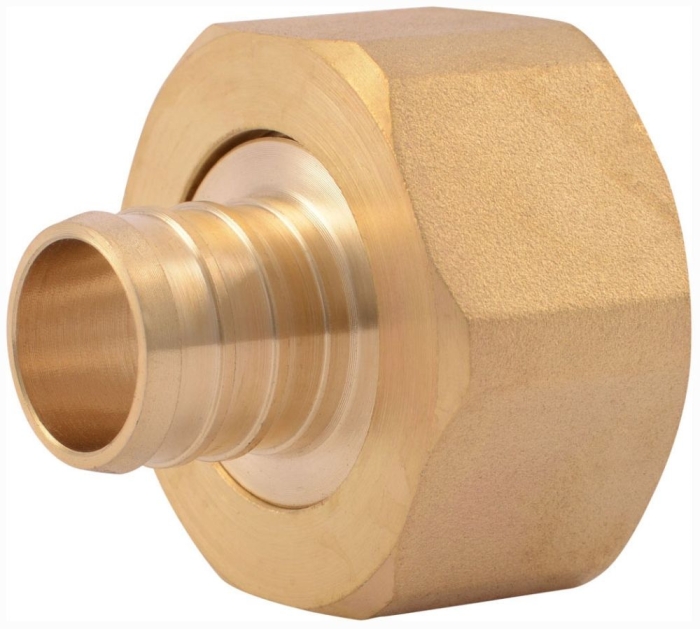

| Lee_Descr | : | UC529LF - SHARKBITE 3/4 X 1 SWIVEL ADAPTER LEAD FREE |
| Lee_UPC | : | 69728550113 |
| Material | : | Brass |
| Nominal Size | : | 3/4 x 1 in |
| UPC_Lee | : | 69728550113 |
| Weight | : | 0.22 lb |
| Width | : | 1.73 in |
| Length | : | 1.73 in |
| Volume | : | 2.47 cu-in |
| Height | : | 1.73 in |
The SharkBite® PEX Swivel Adapter is an easy to install solution to connect PEX tubing to a male threaded connection. These fittings are suitable for potable water distribution and hydronic heating applications. SharkBite® PEX Barb fittings can be used in both a stainless steel clamp system, or a copper crimp ring system as well (each sold separately).
Sharkbite®, UC529LF, Swivel Adapter, 3/4 x 1 in Nominal, PEX Barb x FNPT End Style, Brass, Import
- Broad line of fittings, manifolds, regulator, thermostatic and ball valves: A typical barb system offers the lowest material cost
- Clamp ring connections: The time saving clamp rings and tool offer reduced equipment cost, one tool clamps all sizes and the necessity to check each fitting ring with a go/no-go gauge is eliminated
- Crimp ring connections: Copper crimp rings and the heavy duty tool with interchangeable jaws, does not require calibration and allows each joint to be checked with a go/no-go gauge
- ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- ASTM F1807 specification for metal insert fittings utilizing a copper crimp ring for SDR9 cross-linked polyethylene (PEX) tubing
