| Ball Material |
: |
Polished Chrome Forged Brass |
| Body Material |
: |
Forged Brass |
| Domestic/Import |
: |
Import |
| End Style |
: |
C |
| Inlet to Outlet Length |
: |
3.15 in |
| Lee_Descr |
: |
101-044NL - LEGEND 3/4IN S-1001 NO LEAD FORGED BRASS FULL PORT BALL VALVE |
| Lee_UPC |
: |
66254508178 |
| Nominal Size |
: |
3/4 in |
| Orifice Size |
: |
0.79 in |
| Port Type |
: |
Full |
| Pressure Rating |
: |
600 psi CWP |
| Series |
: |
S-1001NL |
| Top to Inlet Center |
: |
1.89 in |
| Trim Material |
: |
Polished Chrome Forged Brass Stem and TFM PTFE Seat |
| UPC_Lee |
: |
66254508178 |
| Weight |
: |
0.61 lb |
| Width |
: |
2.4 in |
| Length |
: |
5.6 in |
| Volume |
: |
20.83 cu-in |
| Height |
: |
1.55 in |

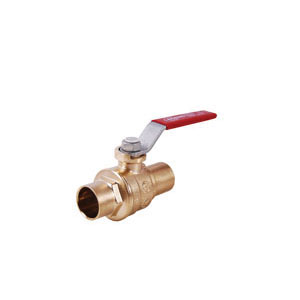

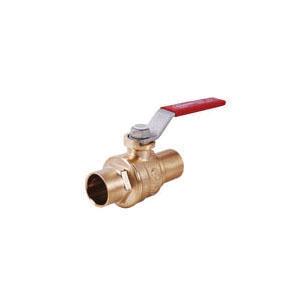

LEGEND Ball Valve, Lead Free, Series: S-1001NL, 3/4 in Nominal, C, 600 psi CWP, Full Port, 0.79 in Orifice, Polished Chrome Forged Brass Ball, 3.15 in Inlet to Outlet Length, 1.89 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, Import
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Bottom loaded Blow-out proof stem
- Maintenance-free dual O-Ring stem seal
- Improved Dyneon® TFM PTFE seats
- 1/8 to 2 in 600 psi cold working pressure
- 150 psi saturated steam
- Third-party tested and certified in compliance with U.S. Federal Public Law 111-380 (National Lead free plumbing law)
- CSA certified 3-88 for use in 2 or 5 lb house piping systems
- Factory mutual approved for fire protection service
