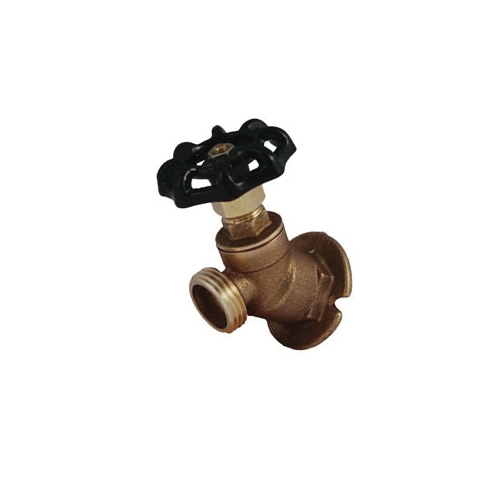

LEGEND 107-174NL T-541NL Low Pressure Sillcock, 1/2 x 3/4 in Nominal, FNPT x Male Garden Hose Threaded End Style, Brass Body, Handwheel Actuator, Import

Manufacturer: Legend
Brand: LEGEND
Lee Supply #: 264840
Manufacturer Part #: 107-174NL
UPC: 66254508357
Customer Part #:
Sold As: 1/PK
Carmel

Actuator Type      :      Handwheel
Body Material      :      Brass
Dimensions      :      3.89 in L Open x 3.55 in L Closed x 2.31 in W
Domestic/Import      :      Import
End Style      :      FNPT x Male Garden Hose Threaded
Lee_Descr      :      12TSCLF - 1/2 BRASS SILCOCK FIP LEAD-FREE
Lee_UPC      :      66254508357
Media      :      Oil/Water
Nominal Size      :      1/2 x 3/4 in
Port Type      :      Full
Pressure Rating      :      125 psi
Series      :      T-541NL
Trim Material      :      Cast Brass
Type      :      Low Pressure
UPC_Lee      :      66254508357
Weight      :      0.47 lb
Width      :      2.45 in
Length      :      3.65 in
Volume      :      18.33 cu-in
Height      :      2.05 in

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

LEGEND Sillcock, Low Pressure, Series: T-541NL, 1/2 x 3/4 in Nominal, FNPT x Male Garden Hose Threaded End Style, 125 psi Pressure, Full Port, Media: Oil/Water, Brass Body, Cast Brass Trim, Handwheel Actuator, 3.89 in L Open x 3.55 in L Closed x 2.31 in W Dimensions, Import

  • Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
  • Full-pattern body, stem and handwheel construction is more durable than reduced-material examples
  • Electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
  • Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
  • Cast iron handle cadmium plated steel nut handle fastened, brass screw, packing nut, NBR (Buna-N) rubber stem packing and seat washer, stainless steel seat retaining screw
  • Cast brass body
